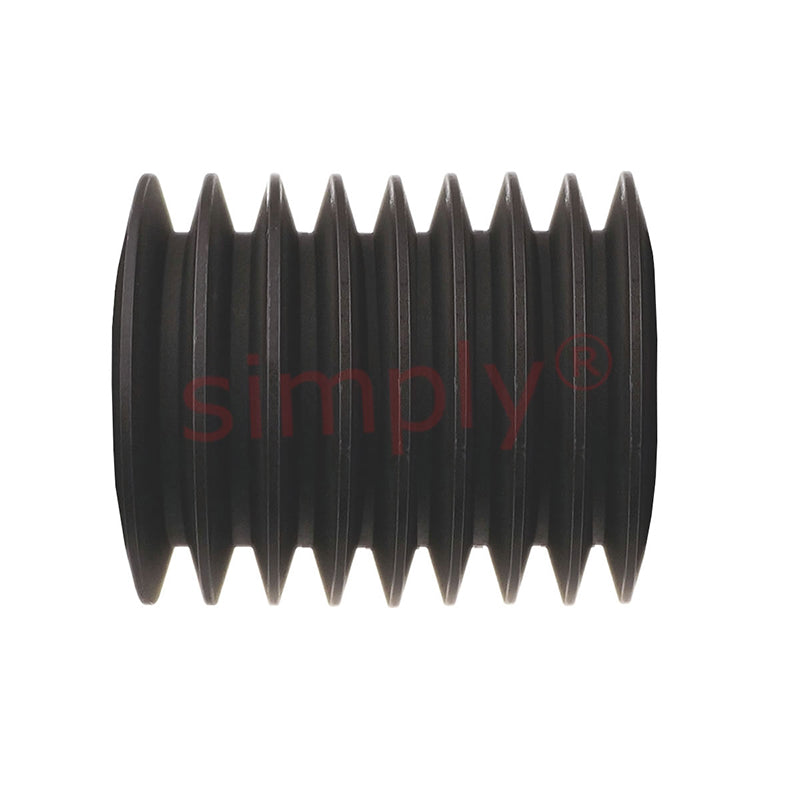

• 355X8SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 1

SKU: 355SPC8-MB

355X8SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

355X8SPC 355mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$723.78 ex VAT
$723.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $484.81
5+ $457.57
9+ $452.13
19+ $446.68
49+ $441.23
74+ $435.79
99+ $408.55
199+ $403.10
249+ $397.65
499+ $392.21
999+ $381.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
365.2mm
Pitch Diameter:
355mm
Max Bore:
100mm

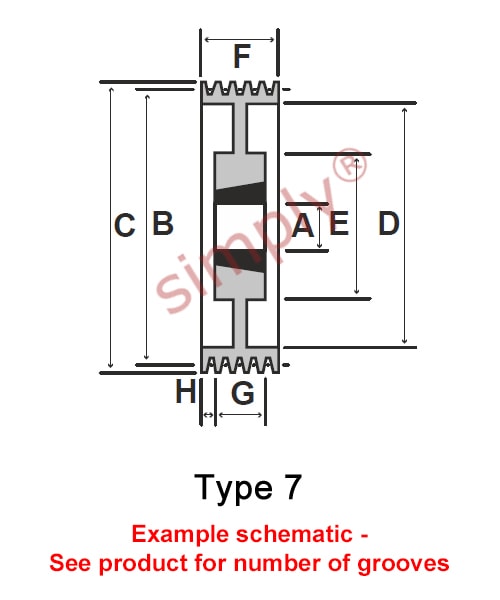

Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 365.2mm
Max Bore A 100mm
Outer Hub Diameter E 210mm
Overall Sheave Depth F 213mm
Bush Seat Length G 65mm
Inner Recess Diameter D 298mm
Inner Recess Length H 74mm
