• 355X5SPZ 355mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 355SPZ5-MB

355X5SPZ 355mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

355X5SPZ 355mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$112.25 ex VAT
$112.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $75.19
5+ $70.96
9+ $70.12
19+ $69.27
49+ $68.43
74+ $67.58
99+ $63.36
199+ $62.52
249+ $61.67
499+ $60.83
999+ $59.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
359.6mm
Pitch Diameter:
355mm
Max Bore:
60mm
Technical

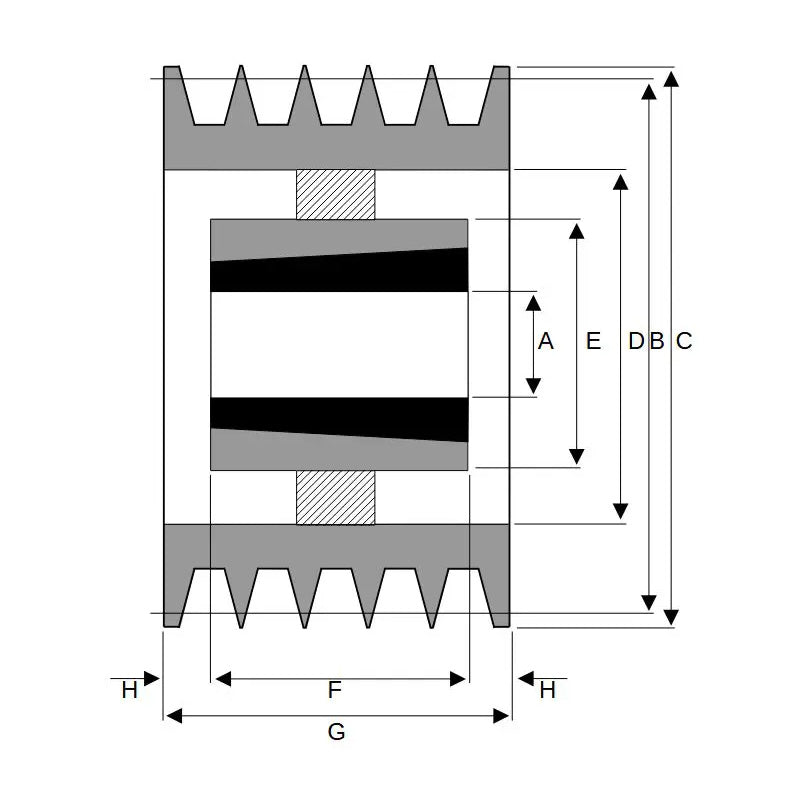

Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 355mm
Overall Outer Diameter C 359.6mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 76mm
Bush Seat Length G 45mm
Inner Recess Diameter D 326mm
Inner Recess Length H 9.5mm
