Timken 355X/353D TDO Double Outer Race Taper Roller Bearing 1.75x3.548x1.9998x1.75 inch - Allow 2-3 Days
Timken 355X/353D TDO Double Outer Race Taper Roller Bearing 1.75x3.548x1.9998x1.75 inch - Allow 2-3 Days
Regular price
$589.31
ex VAT
Regular price
Sale price
$589.31
ex VAT
In stock
Price Break
10+
$439.03
20+
$421.29
30+
$412.42
40+
$399.11
50+
$390.24
75+
$368.07
100+
$310.42
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 90.12mm = 3.548 inch
- Width:
- 50.79mm = 1.999 inch

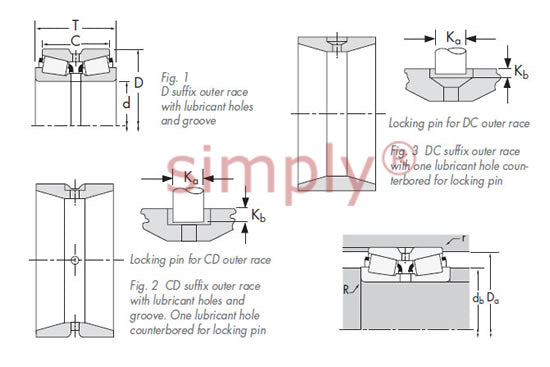

Technical
Technical
| d | 44.45mm = 1.75 inch |
|---|---|
| D | 90.119mm = 3.548 inch |
| T | 50.795mm = 1.9998 inch |
| C | 44.45mm = 1.75 inch |
| Dynamic (1) C1 | 132000N |
| Factors (5) e | 0.31 |
| Factors (5) Y1 | 2.2 |
| Factors (5) Y2 | 3.28 |
| Dynamic (2) C90 | 19600N |
| Dynamic (2) Ca90 | 10300N |
| Dynamic (2) C90(2) | 34200N |
| Factors (5) K | 1.91 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 56mm = 2.2 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 82mm = 3.23 inch |
| G1 | 30 |
| G2 | 12.2 |
| Cg | 0.0732 |
