• Timken 375S/372A TS Single-Row Taper Roller Bearing 2x3.8125x0.875 inch
  • Timken
1 2

SKU: 375S/372A-TIM

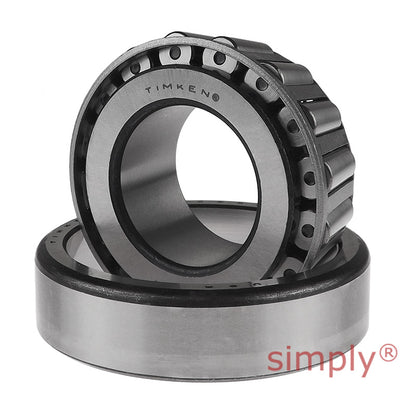

Timken 375S/372A TS Single-Row Taper Roller Bearing 2x3.8125x0.875 inch

Timken 375S/372A TS Single-Row Taper Roller Bearing 2x3.8125x0.875 inch
$223.66 ex VAT
$223.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $149.81
20+ $141.40
30+ $139.71
40+ $138.03
50+ $136.35
75+ $134.66
100+ $126.25
200+ $124.57
250+ $122.88
500+ $121.20
1000+ $117.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
96.84mm = 3.813 (3-13/16) inch
Width:
22.23mm = 0.875 (7/8) inch
Technical
d 50.4mm = 2 inch
D 96.838mm = 3.8125 inch
T 22.225mm = 0.875 inch
Dynamic (1) C1 81400N
Factors (5) e 0.34
Factors (5) Y 1.77
Dynamic (2) C90 21100N
Dynamic (2) Ca90 12200N
Factors (5) K 1.73
Static C0 101000N
Bearing B 22.225mm = 0.875 inch
Bearing C 19.05mm = 0.75 inch
Bearing a(3) -3.8mm = -0.15 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 57mm = 2.24 inch
Shaft backing shoulder diameter db 63mm = 2.48 inch
Housing backing shoulder diameter r(4) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 90mm = 3.54 inch
Housing backing shoulder diameter Db 86mm = 3.39 inch
Cage Aa 0.8mm = 0.03 inch
Cage Ab 1.4mm = 0.06 inch
G1 37.6
G2 15.4
Cg 0.0816
