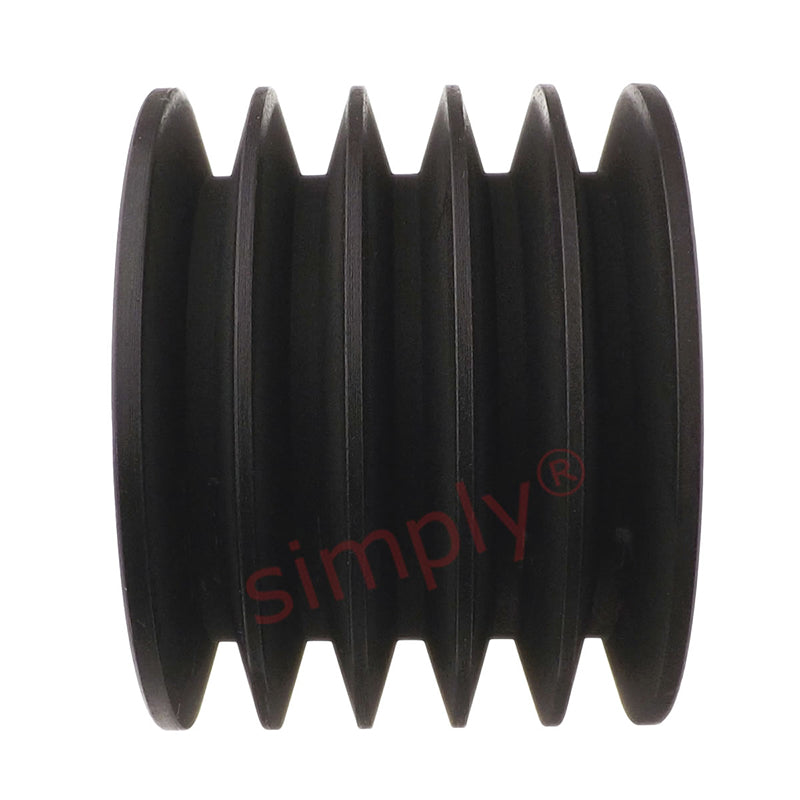

• 375X5SPC 375mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 375SPC5-MB

375X5SPC 375mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

375X5SPC 375mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$328.64 ex VAT
$328.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $220.13
5+ $207.76
9+ $205.29
19+ $202.82
49+ $200.34
74+ $197.87
99+ $185.50
199+ $183.03
249+ $180.56
499+ $178.08
999+ $173.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
385.2mm
Pitch Diameter:
375mm
Max Bore:
90mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 375mm
Overall Outer Diameter C 385.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 136mm
Bush Seat Length G 65mm
Inner Recess Diameter D 318mm
Inner Recess Length H 35.5mm
