• Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
  • Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
  • Timken
1 3

SKU: 378DE/372A-TIM

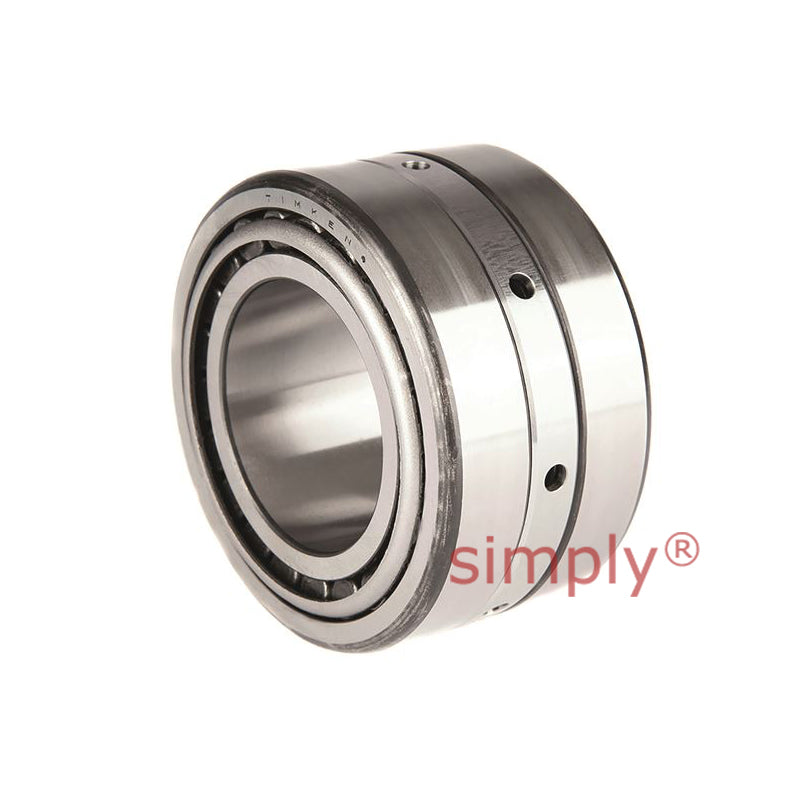

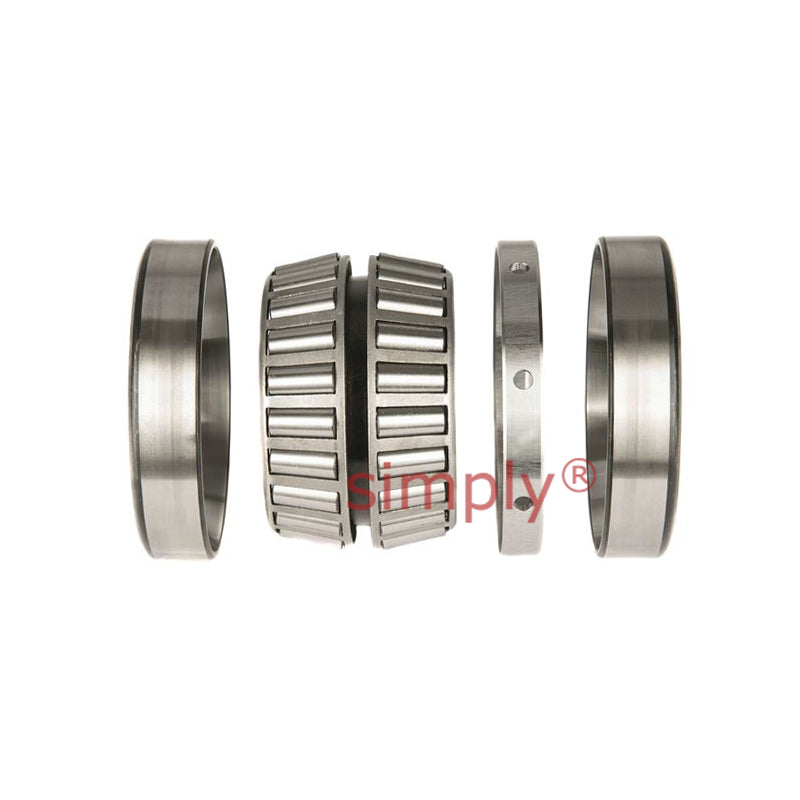

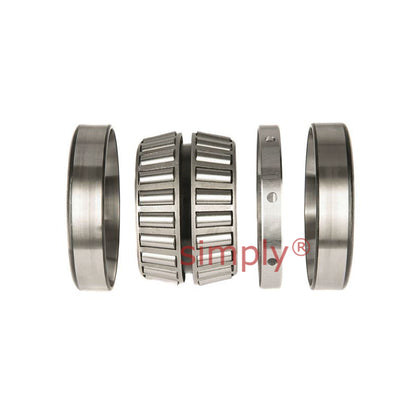

Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch

Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
$493.69 ex VAT
$493.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $330.69
20+ $312.11
30+ $308.40
40+ $304.68
50+ $300.96
75+ $297.25
100+ $278.67
200+ $274.96
250+ $271.24
500+ $267.52
1000+ $260.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
96.84mm = 3.813 (3-13/16) inch
Width:
53.19mm = 2.094 (2-3/32) inch
Technical
d 49.212mm = 1.9375 inch
D 96.838mm = 3.8125 inch
T 53.188mm = 2.094 inch
C 53.188mm = 2.094 inch
Dynamic (1) C1 142000N
Factors (5) e 0.34
Factors (5) Y1 1.99
Factors (5) Y2 2.97
Dynamic (2) C90 21100N
Dynamic (2) Ca90 12200N
Dynamic (2) C90(2) 36800N
Factors (5) K 1.73
Shaft max shaft fillet radius R (3) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 56mm = 2.2 inch
Housing max shaft fillet radius r (3) 1.5mm = 0.06 inch
Housing backing shoulder diameter Db 86mm = 3.39 inch
G1 37.6
G2 15.4
Cg 0.0816
