SKU: 3800.B.2RSR.TVH

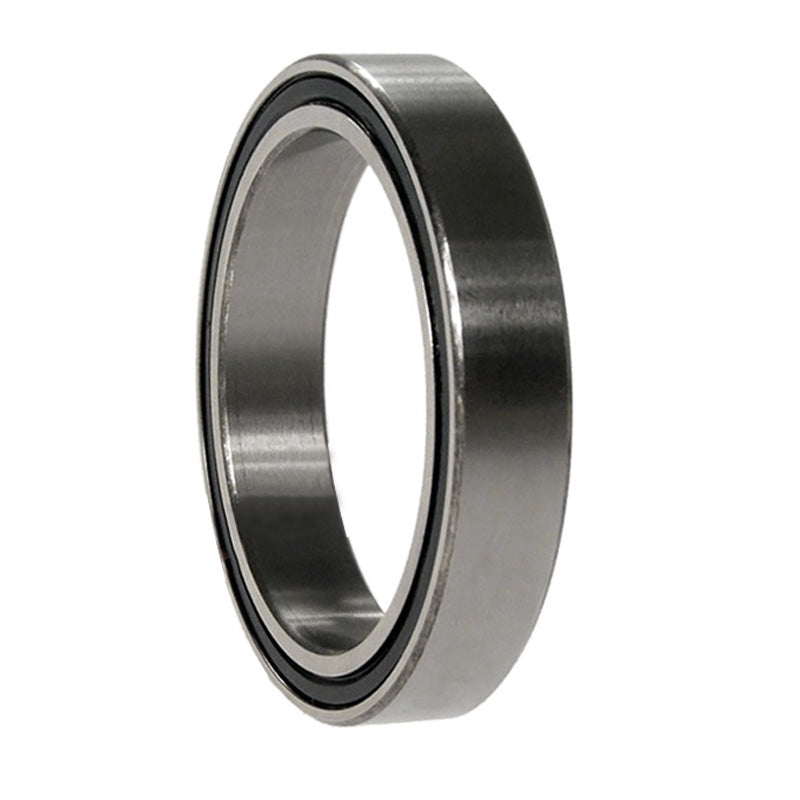

INA 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm

Name: INA 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
Brand: INA
SKU: 3800.B.2RSR.TVH
Price: 46.24 USD
Availability: InStock

$46.24 ex VAT

Sale Sold out

Equivalent to: 5800B2RSRTVH

Low stock

Price Break

10+ $30.97

19+ $29.23

29+ $28.88

39+ $28.54

49+ $28.19

74+ $27.84

99+ $26.10

199+ $25.75

249+ $25.40

499+ $25.06

999+ $24.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals

Brand / Quality:: INA - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 19mm
Width:: 7mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	10mm
D	19mm
B	7mm
a	9mm
d1 max	16.7mm
Da max	17mm
da min	12mm
ra max	0.3mm
r min	0.3mm
Contact angle ?	25°
Weight	0.008 kg
Dynamic load Cr	2080 N
Static load Cor	1370 N
Fatigue limit load Cur	70 N
Reference speed	18000 rpm
Limiting Speed	21100 rpm
