SKU: 3800.B.2RSR.TVH.EU

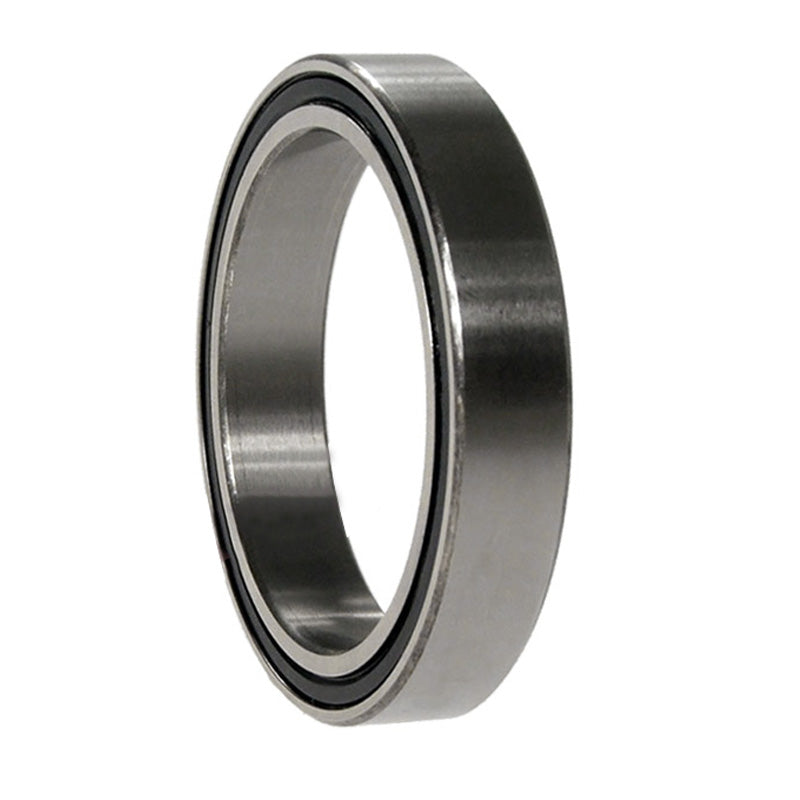

Budget 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm

Name: Budget 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
Brand: Gen
SKU: 3800.B.2RSR.TVH.EU
Price: 12.17 USD
Availability: InStock

$12.17 ex VAT

Sale Sold out

Equivalent to: 5800B2RSRTVH

In stock

Price Break

10+ $8.15

19+ $7.69

29+ $7.60

39+ $7.51

49+ $7.42

74+ $7.33

99+ $6.87

199+ $6.78

249+ $6.69

499+ $6.59

999+ $6.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 19mm
Width:: 7mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	10mm
D	19mm
B	7mm
a	8.1mm
d1 max	13mm
Da max	17mm
da min	12mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.008 kg
Dynamic load Cr	2120 N
Static load Cor	1400 N
Fatigue limit load Cur	71 N
Reference speed	16000 rpm
Limiting Speed	21100 rpm
