SKU: 3800.B.2RSR.TVH-ZXB

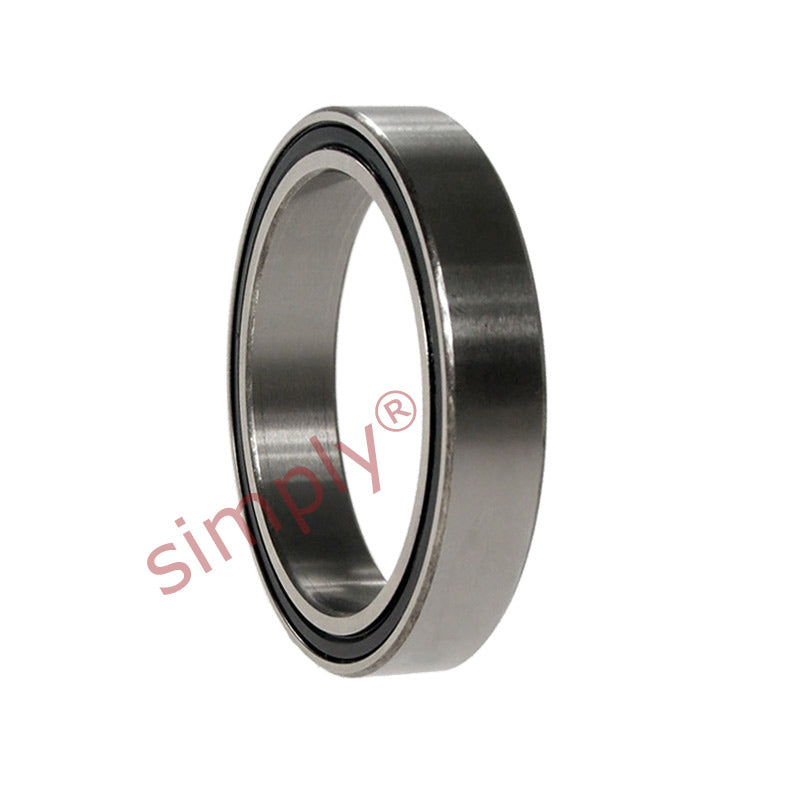

ZXB 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
- Regular price
- $31.68 ex VAT
- Sale price
- $31.68
- Regular price
-
In stock
Quantity Price Breaks
10
$28.20
19
$26.61
29
$26.29
39
$25.98
49
$25.66
74
$25.34
99
$23.76
199
$23.44
249
$23.13
499
$22.81
999
$22.18
SKU:
3800.B.2RSR.TVH-ZXB
ZXB 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
- Regular price
- $31.68 ex VAT
- Sale price
- $31.68
- Regular price
-
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Technical
| d | = | 10mm |
| D | = | 19mm |
| B | = | 7mm |
| a | = | 8.1mm |
| d1 max | = | 13mm |
| Da max | = | 17mm |
| da min | = | 12mm |
| ra max | = | 0.3mm |
| r min | = | 0.3mm |
| Contact angle a | = | 25? |
| Weight | = | 0.008 kg |
| Dynamic load Cr | = | 2120 N |
| Static load Cor | = | 1400 N |
| Fatigue limit load Cur | = | 71 N |
| Reference speed | = | 16000 rpm |
| Limiting Speed | = | 21100 rpm |
