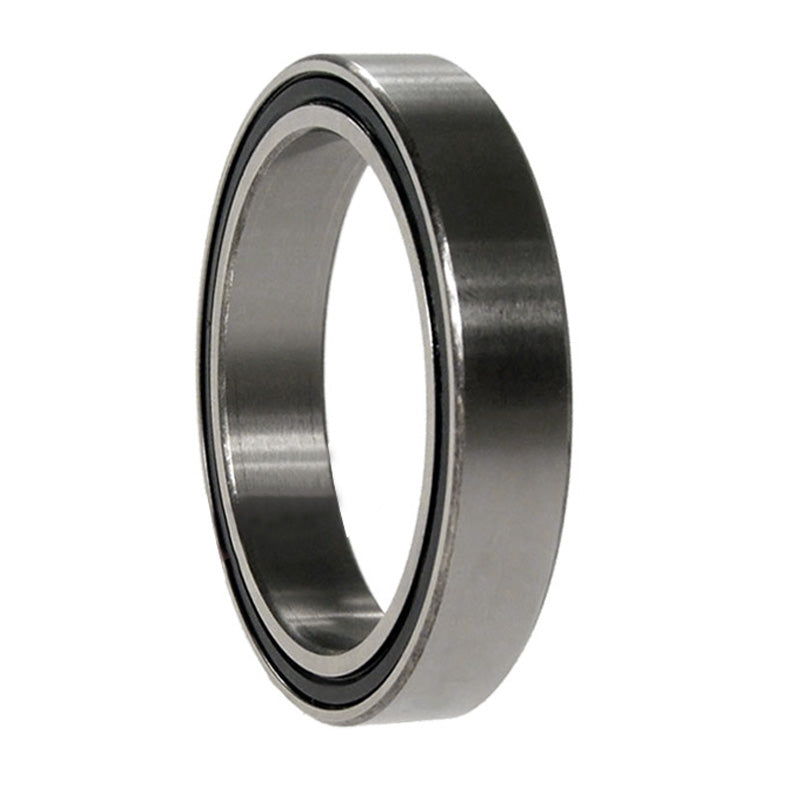

Budget 3801B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 12x21x7mm

Name: Budget 3801B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 12x21x7mm
Brand: Gen
SKU: 3801.B.2RSR.TVH.EU
Price: 12.77 USD
Availability: InStock

$12.77 ex VAT

Sale Sold out

Equivalent to: 5801B2RSRTVH

In stock

Price Break

10+ $8.55

19+ $8.07

29+ $7.97

39+ $7.88

49+ $7.78

74+ $7.69

99+ $7.21

199+ $7.11

249+ $7.01

499+ $6.92

999+ $6.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Width:: 7mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	12mm
D	21mm
B	7mm
a	8.9mm
d1 max	15mm
Da max	19mm
da min	14mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.008 kg
Dynamic load Cr	2190 N
Static load Cor	1550 N
Fatigue limit load Cur	79 N
Reference speed	15000 rpm
Limiting Speed	18100 rpm
