SKU: 3802.B.2RSR.TVH

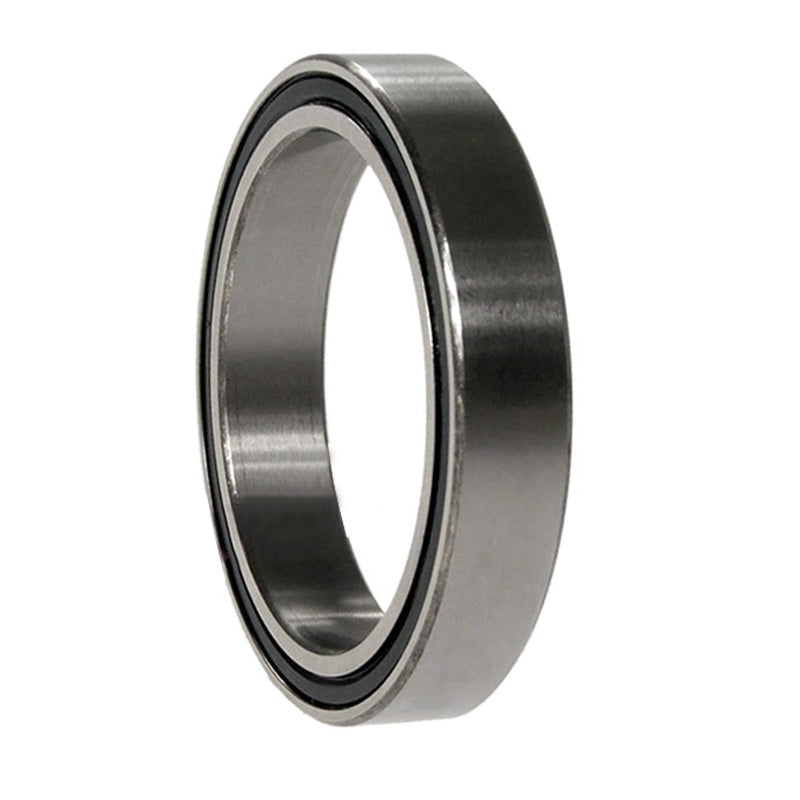

FAG 3802B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 15x24x7mm

Name: FAG 3802B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 15x24x7mm
Brand: FAG
SKU: 3802.B.2RSR.TVH
Price: 46.20 USD
Availability: InStock

$46.20 ex VAT

Sale Sold out

Equivalent to: 5802B2RSRTVH

Low stock

Price Break

10+ $30.95

19+ $29.21

29+ $28.86

39+ $28.51

49+ $28.16

74+ $27.82

99+ $26.08

199+ $25.73

249+ $25.38

499+ $25.03

999+ $24.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 7mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	15mm
D	24mm
B	7mm
a	11.3mm
d1 max	21.8mm
Da max	22mm
da min	17mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.012 kg
Dynamic load Cr	2080 N
Static load Cor	1560 N
Fatigue limit load Cur	79 N
Reference speed	16000 rpm
Limiting Speed	14600 rpm
