SKU: 3802.B.2RSR.TVH.EU

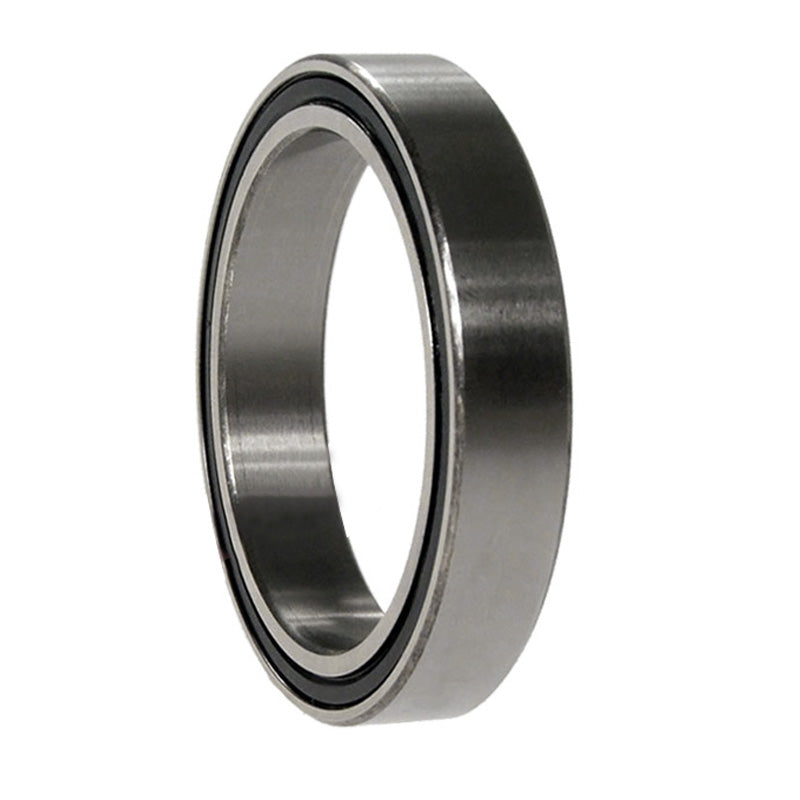

Budget 3802B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 15x24x7mm

Name: Budget 3802B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 15x24x7mm
Brand: Gen
SKU: 3802.B.2RSR.TVH.EU
Price: 13.37 USD
Availability: InStock

$13.37 ex VAT

Sale Sold out

Equivalent to: 5802B2RSRTVH

In stock

Price Break

10+ $8.95

19+ $8.45

29+ $8.35

39+ $8.25

49+ $8.14

74+ $8.04

99+ $7.54

199+ $7.44

249+ $7.34

499+ $7.24

999+ $7.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 7mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	15mm
D	24mm
B	7mm
a	10.1mm
d1 max	18mm
Da max	22mm
da min	17mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.009 kg
Dynamic load Cr	2430 N
Static load Cor	1960 N
Fatigue limit load Cur	99 N
Reference speed	14000 rpm
Limiting Speed	14800 rpm
