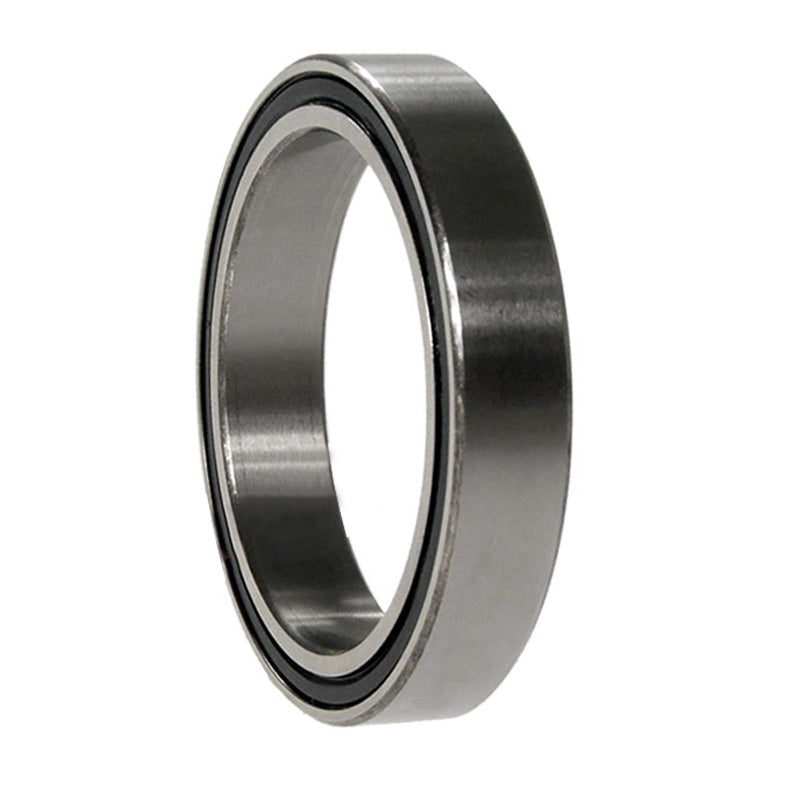

• INA 3803B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 17x26x7mm
  • INA
1 2

SKU: 3803.B.2RSR.TVH

INA 3803B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 17x26x7mm

INA 3803B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 17x26x7mm
$32.54 ex VAT
$32.54 ex VAT
Sale Sold out

Equivalent to: 5803B2RSRTVH

Low stock

Price Break
10+ $21.80
19+ $20.57
29+ $20.33
39+ $20.08
49+ $19.84
74+ $19.59
99+ $18.37
199+ $18.12
249+ $17.88
499+ $17.63
999+ $17.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals
Brand / Quality:
INA - High Quality
Inside Diameter:
17mm
Outside Diameter:
26mm
Width:
7mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 17mm
D 26mm
B 7mm
a 12.3mm
d1 max 23.8mm
Da max 24mm
da min 19mm
ra max 0.3mm
r min 0.3mm
Contact angle α 25°
Weight 0.013 kg
Dynamic load Cr 2430 N
Static load Cor 2020 N
Fatigue limit load Cur 105 N
Reference speed 14000 rpm
Limiting Speed 13200 rpm
