SKU: 3804.B.2RSR.TVH

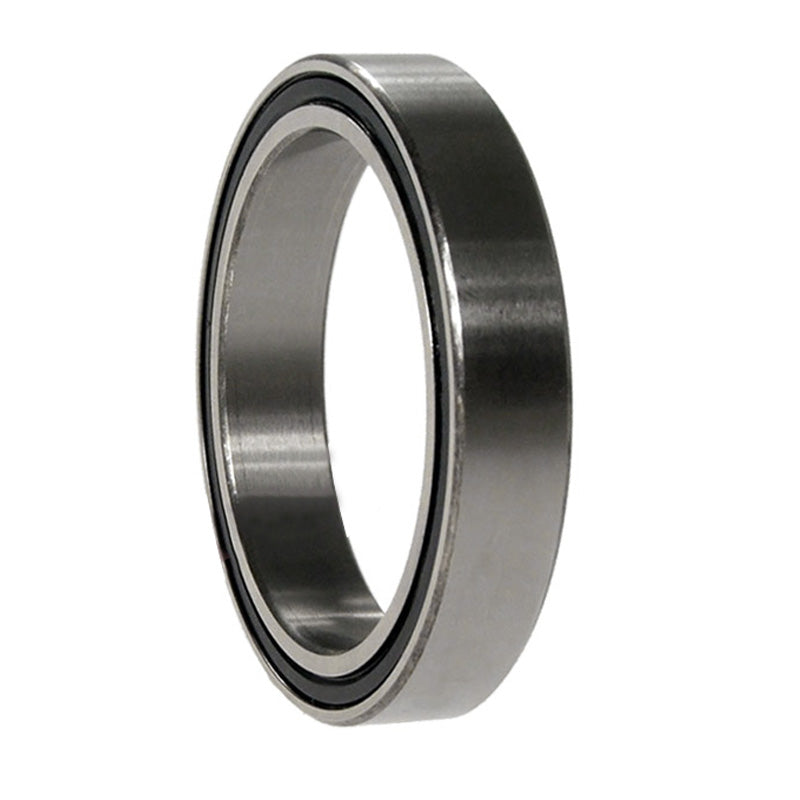

INA 3804B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 20x32x10mm

Name: INA 3804B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 20x32x10mm
Brand: INA
SKU: 3804.B.2RSR.TVH
Price: 48.71 USD
Availability: InStock

$48.71 ex VAT

Sale Sold out

Equivalent to: 5804B2RSRTVH

Low stock

Price Break

10+ $32.63

19+ $30.79

29+ $30.43

39+ $30.06

49+ $29.69

74+ $29.33

99+ $27.50

199+ $27.13

249+ $26.76

499+ $26.40

999+ $25.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 32mm
Width:: 10mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	20mm
D	32mm
B	10mm
a	16.1mm
d1 max	30.1mm
Da max	30mm
da min	22mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.026 kg
Dynamic load Cr	5600 N
Static load Cor	4750 N
Fatigue limit load Cur	240 N
Reference speed	12000 rpm
Limiting Speed	10700 rpm
