SKU: 3804.B.2ZR.TVH-MB

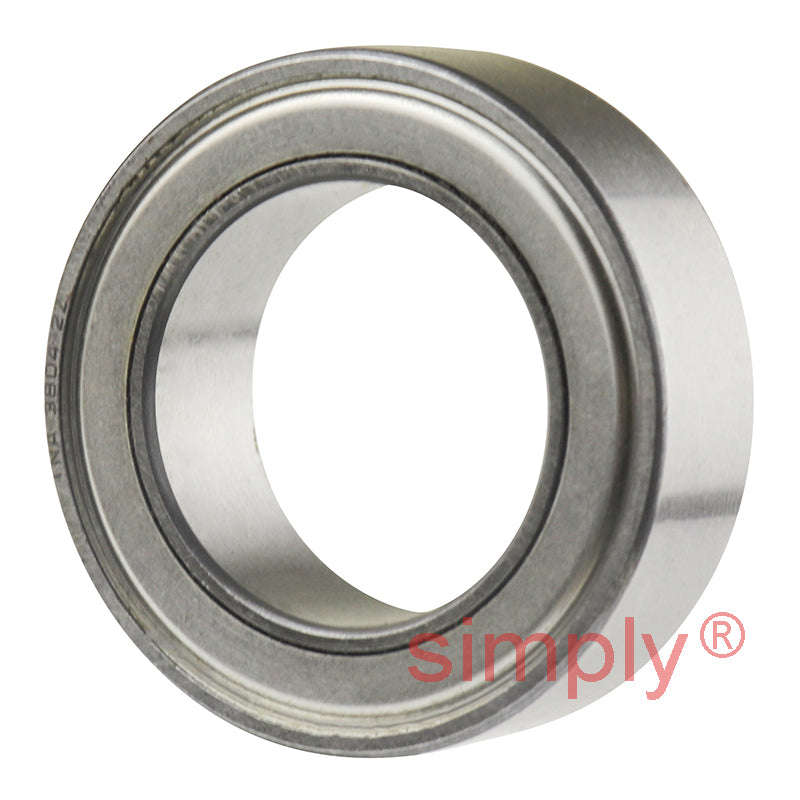

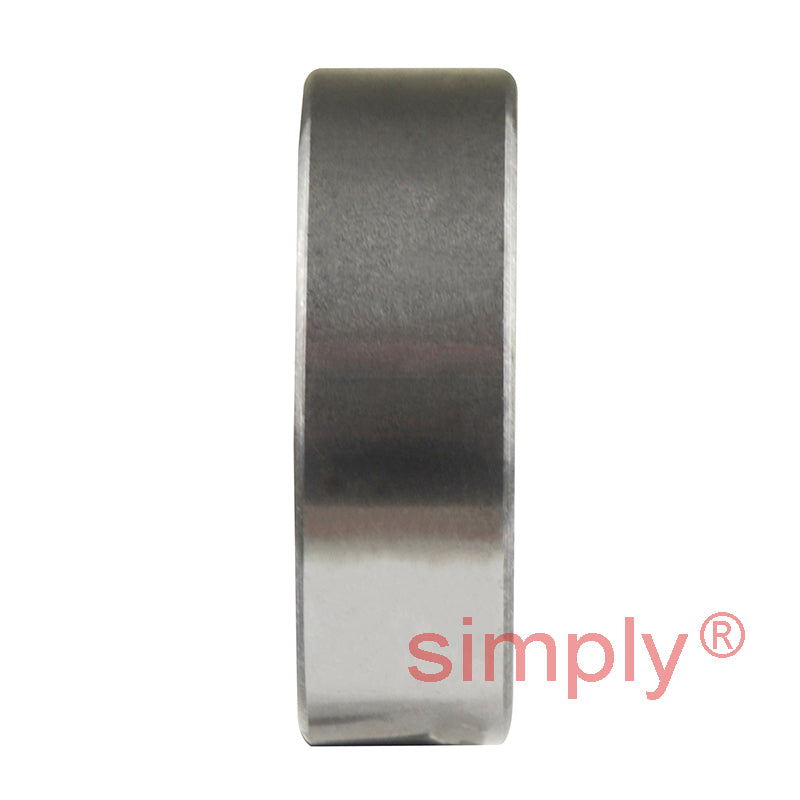

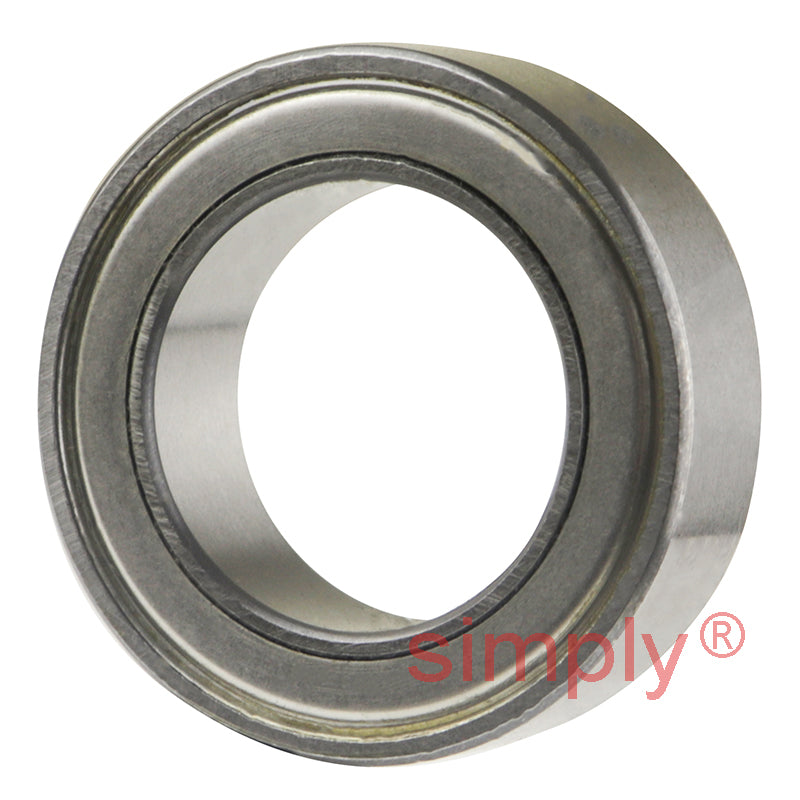

Major Branded 3804B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 20x32x10mm

Major Branded 3804B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 20x32x10mm
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

Equivalent to: 5804B2RSRTVH

Low stock

Price Break
10+ $20.97
19+ $19.79
29+ $19.56
39+ $19.32
49+ $19.09
74+ $18.85
99+ $17.67
199+ $17.44
249+ $17.20
499+ $16.96
999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Width:
10mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 20mm
D 32mm
B 10mm
a 14.3mm
d1 max 24.3mm
Da max 30mm
da min 22mm
ra max 0.3mm
r min 0.3mm
Contact angle α 25°
Weight 0.02 kg
Dynamic load Cr 5800 N
Static load Cor 4850 N
Fatigue limit load Cur 245 N
Reference speed 10000 rpm
Limiting Speed 11900 rpm
