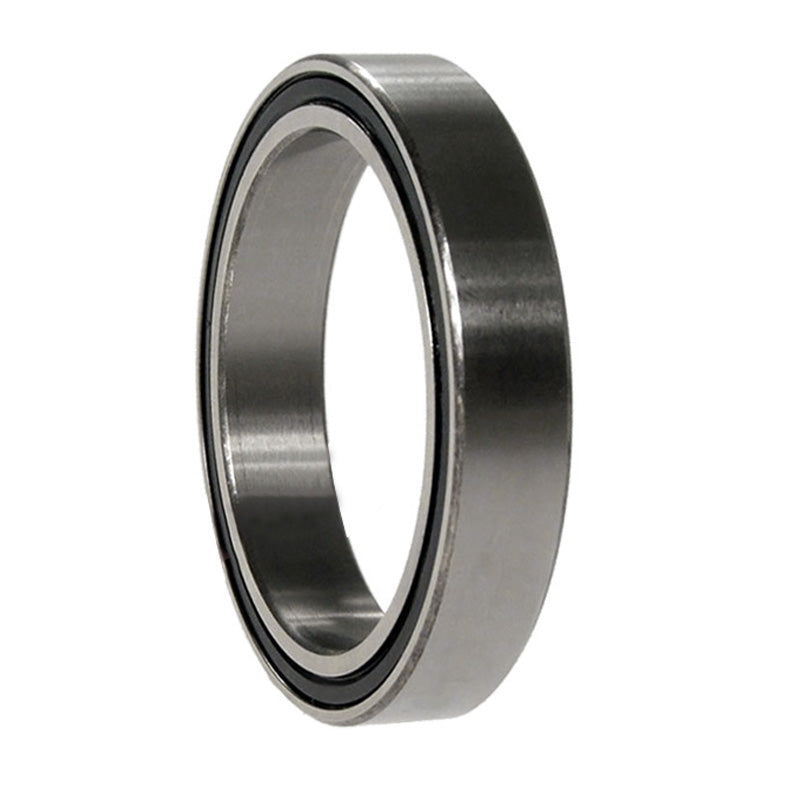

• Budget 3805B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 25x37x10mm
1 1

SKU: 3805.B.2RSR.TVH.EU

Budget 3805B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 25x37x10mm

Budget 3805B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 25x37x10mm
$37.70 ex VAT
$37.70 ex VAT
Sale Sold out

Equivalent to: 5805B2RSRTVH

Low stock

Price Break
10+ $25.25
19+ $23.83
29+ $23.55
39+ $23.26
49+ $22.98
74+ $22.70
99+ $21.28
199+ $20.99
249+ $20.71
499+ $20.43
999+ $19.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
37mm
Width:
10mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 25mm
D 37mm
B 10mm
a 15.9mm
d1 max 28.3mm
Da max 35mm
da min 27mm
ra max 0.3mm
r min 0.3mm
Contact angle α 25°
Weight 0.025 kg
Dynamic load Cr 6000 N
Static load Cor 5600 N
Fatigue limit load Cur 280 N
Reference speed 8500 rpm
Limiting Speed 10300 rpm
