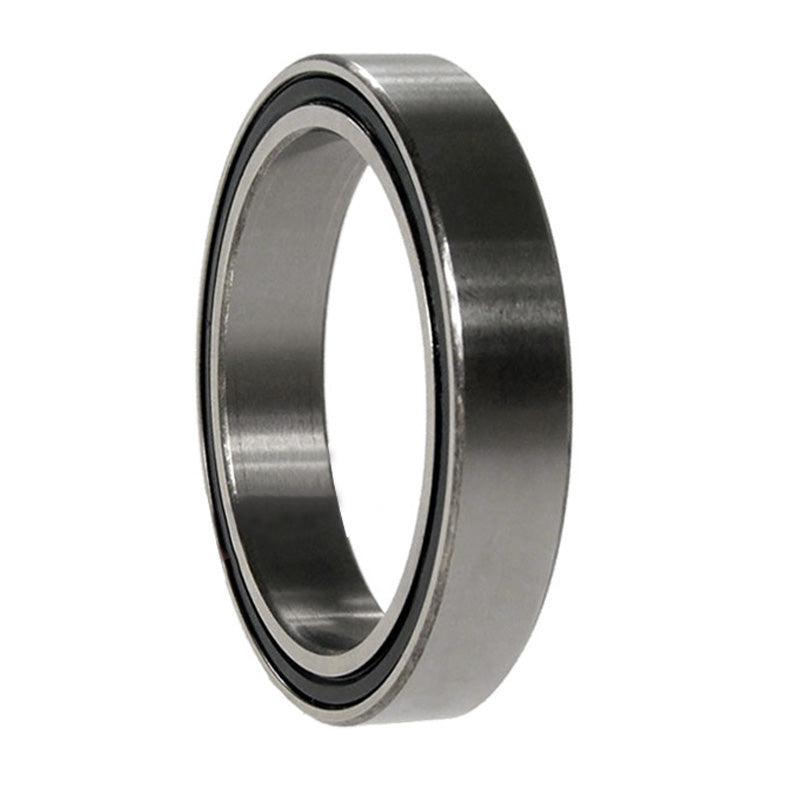

• INA 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm
  • INA
1 2

SKU: 3806.B.2RSR.TVH

INA 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm

INA 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm
$54.90 ex VAT
$54.90 ex VAT
Sale Sold out

Equivalent to: 5806B2RSRTVH

In stock

Price Break
10+ $36.77
19+ $34.71
29+ $34.30
39+ $33.88
49+ $33.47
74+ $33.06
99+ $30.99
199+ $30.58
249+ $30.16
499+ $29.75
999+ $28.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
42mm
Width:
10mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 30mm
D 42mm
B 10mm
a 20.2mm
d1 max 39mm
Da max 40mm
da min 32mm
ra max 0.3mm
r min 0.3mm
Contact angle α 25°
Weight 0.037 kg
Dynamic load Cr 6100 N
Static load Cor 6000 N
Fatigue limit load Cur 315 N
Reference speed 8000 rpm
Limiting Speed 8100 rpm
