SKU: 3806.B.2RSR.TVH.EU

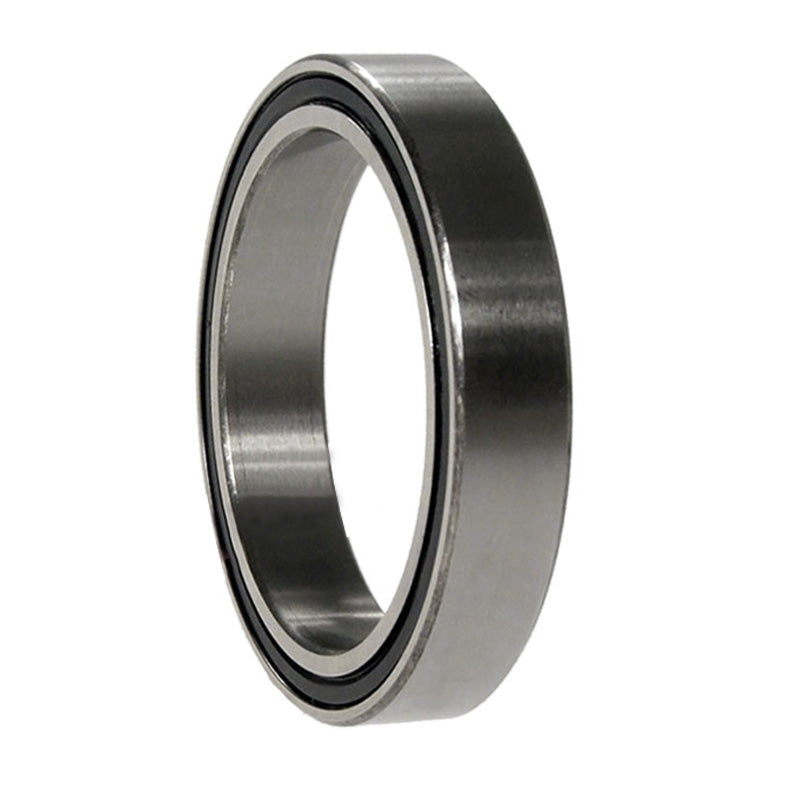

Budget 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm

Name: Budget 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm
Brand: Gen
SKU: 3806.B.2RSR.TVH.EU
Price: 17.27 USD
Availability: InStock

$17.27 ex VAT

Sale Sold out

Equivalent to: 5806B2RSRTVH

In stock

Price Break

10+ $11.57

19+ $10.92

29+ $10.79

39+ $10.66

49+ $10.53

74+ $10.40

99+ $9.75

199+ $9.62

249+ $9.49

499+ $9.36

999+ $9.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 42mm
Width:: 10mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	30mm
D	42mm
B	10mm
a	18.1mm
d1 max	32.8mm
Da max	40mm
da min	32mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.03 kg
Dynamic load Cr	6300 N
Static load Cor	6100 N
Fatigue limit load Cur	320 N
Reference speed	7000 rpm
Limiting Speed	8700 rpm
