SKU: 3807.B.2RSR.TVH.EU

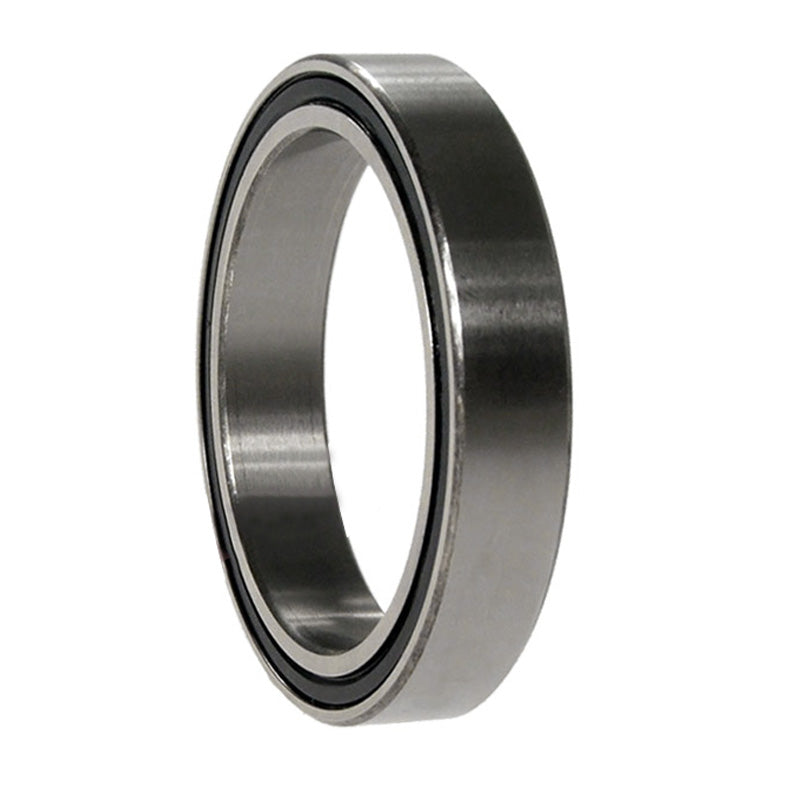

Budget 3807B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 35x47x10mm

Name: Budget 3807B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 35x47x10mm
Brand: Gen
SKU: 3807.B.2RSR.TVH.EU
Price: 18.64 USD
Availability: InStock

$18.64 ex VAT

Sale Sold out

Equivalent to: 5807B2RSRTVH

In stock

Price Break

10+ $12.48

19+ $11.78

29+ $11.64

39+ $11.50

49+ $11.36

74+ $11.22

99+ $10.52

199+ $10.38

249+ $10.24

499+ $10.10

999+ $9.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 10mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	35mm
D	47mm
B	10mm
a	20mm
d1 max	38.5mm
Da max	45mm
da min	37mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.035 kg
Dynamic load Cr	6700 N
Static load Cor	7000 N
Fatigue limit load Cur	370 N
Reference speed	6000 rpm
Limiting Speed	7400 rpm
