• INA 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm
  • INA
1 2

SKU: 3810.B.2RSR.TVH

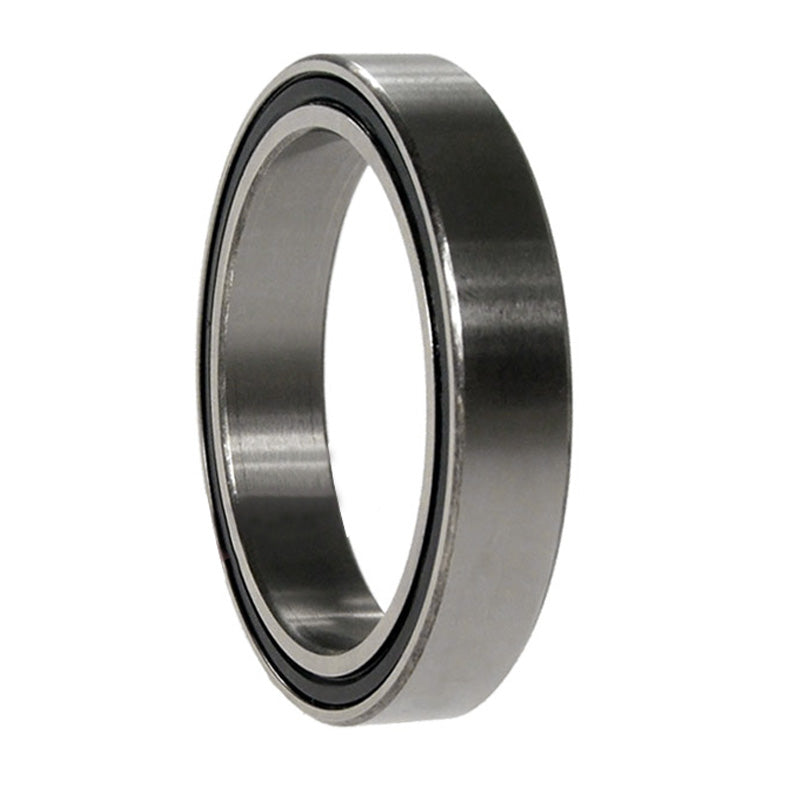

INA 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm

INA 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm
$84.28 ex VAT
$84.28 ex VAT
Sale Sold out

Equivalent to: 5810B2RSRTVH

Low stock

Price Break
10+ $56.45
19+ $53.28
29+ $52.65
39+ $52.01
49+ $51.38
74+ $50.74
99+ $47.57
199+ $46.94
249+ $46.30
499+ $45.67
999+ $44.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Outside Diameter:
65mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 50mm
D 65mm
B 12mm
a 31mm
d1 max 61.7mm
Da max 63mm
da min 52mm
ra max 0.3mm
r min 0.3mm
Contact angle ? 25°
Weight 0.093 kg
Dynamic load Cr 8500 N
Static load Cor 10200 N
Fatigue limit load Cur 570 N
Reference speed 5300 rpm
Limiting Speed 4800 rpm
