SKU: 3810.B.2RSR.TVH.EU

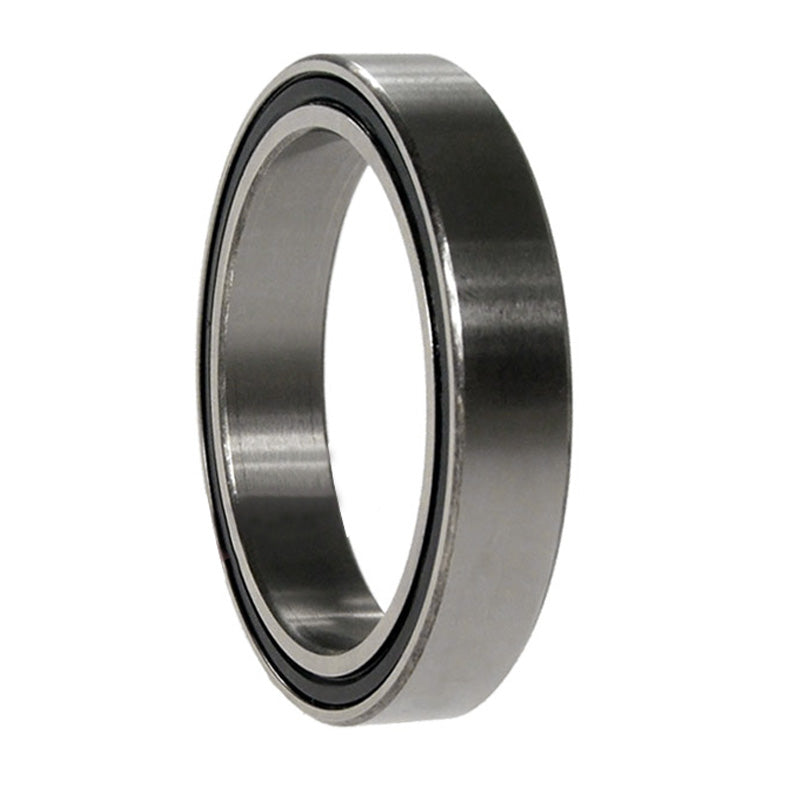

Budget 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm

Name: Budget 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm
Brand: Gen
SKU: 3810.B.2RSR.TVH.EU
Price: 42.34 USD
Availability: InStock

$42.34 ex VAT

Sale Sold out

Equivalent to: 5810B2RSRTVH

Low stock

Price Break

10+ $28.36

19+ $26.76

29+ $26.45

39+ $26.13

49+ $25.81

74+ $25.49

99+ $23.90

199+ $23.58

249+ $23.26

499+ $22.94

999+ $22.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 50mm
Outside Diameter:: 65mm
Width:: 12mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	50mm
D	65mm
B	12mm
a	27.1mm
d1 max	55.1mm
Da max	63mm
da min	52mm
ra max	0.3mm
r min	0.3mm
Contact angle ?	25°
Weight	0.07 kg
Dynamic load Cr	8700 N
Static load Cor	10400 N
Fatigue limit load Cur	580 N
Reference speed	4500 rpm
Limiting Speed	5400 rpm
