SKU: 3812.B.2RSR.TVH

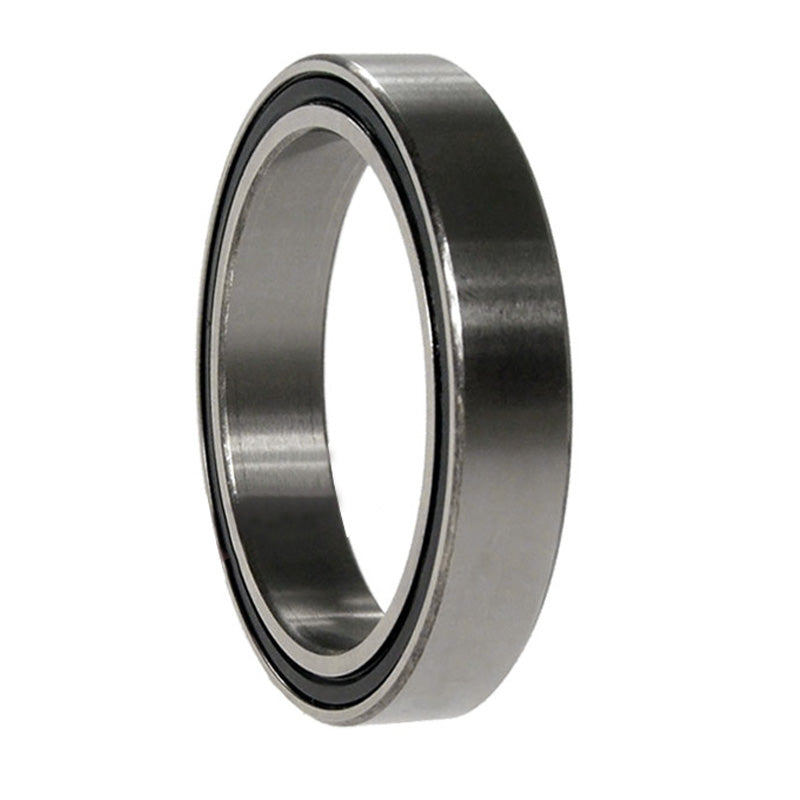

INA 3812B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 60x78x14mm

Name: INA 3812B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 60x78x14mm
Brand: INA
SKU: 3812.B.2RSR.TVH
Price: 140.75 USD
Availability: InStock

$140.75 ex VAT

Sale Sold out

Equivalent to: 5812B2RSRTVH

Low stock

Price Break

10+ $94.28

19+ $88.98

29+ $87.92

39+ $86.86

49+ $85.80

74+ $84.74

99+ $79.45

199+ $78.39

249+ $77.33

499+ $76.27

999+ $74.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 78mm
Width:: 14mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	60mm
D	78mm
B	14mm
a	38.1mm
d1 max	74.8mm
Da max	76mm
da min	62mm
ra max	0.3mm
r min	0.3mm
Contact angle α	25°
Weight	0.166 kg
Dynamic load Cr	14200 N
Static load Cor	17100 N
Fatigue limit load Cur	940 N
Reference speed	4300 rpm
Limiting Speed	4050 rpm
