SKU: 3813.B.2RSR.TVH.EU

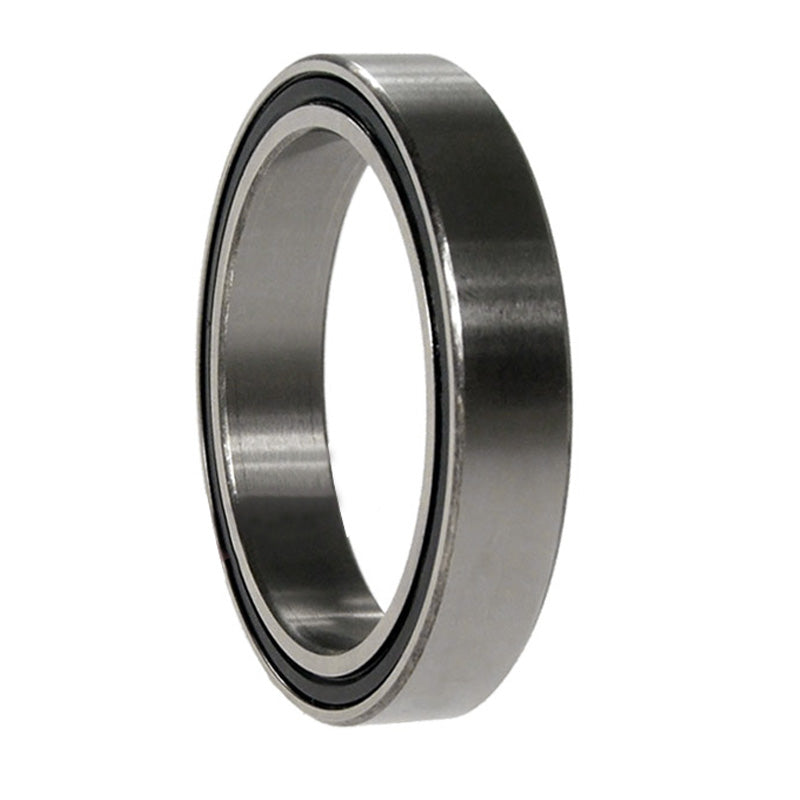

Budget 3813B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 65x85x15mm - Allow 2-3 Days
Budget 3813B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 65x85x15mm - Allow 2-3 Days
Regular price
$29.45
ex VAT
Regular price
Sale price
$29.45
ex VAT
Equivalent to: 5813B2RSRTVH
In stock
Price Break
10+
$21.94
19+
$21.05
29+
$20.61
39+
$19.94
49+
$19.50
74+
$18.39
99+
$15.51
199+
$15.51
249+
$15.51
499+
$15.51
999+
$15.51
Quantity
Couldn't load pickup availability
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 85mm |
| B | 15mm |
| a | 36.2mm |
| d1 max | 71.2mm |
| Da max | 81.8mm |
| da min | 68.2mm |
| ra max | 0.6mm |
| r min | 0.6mm |
| Contact angle ? | 25° |
| Weight | 0.16 kg |
| Dynamic load Cr | 17700 N |
| Static load Cor | 21400 N |
| Fatigue limit load Cur | 1120 N |
| Reference speed | 3600 rpm |
| Limiting Speed | 4500 rpm |
