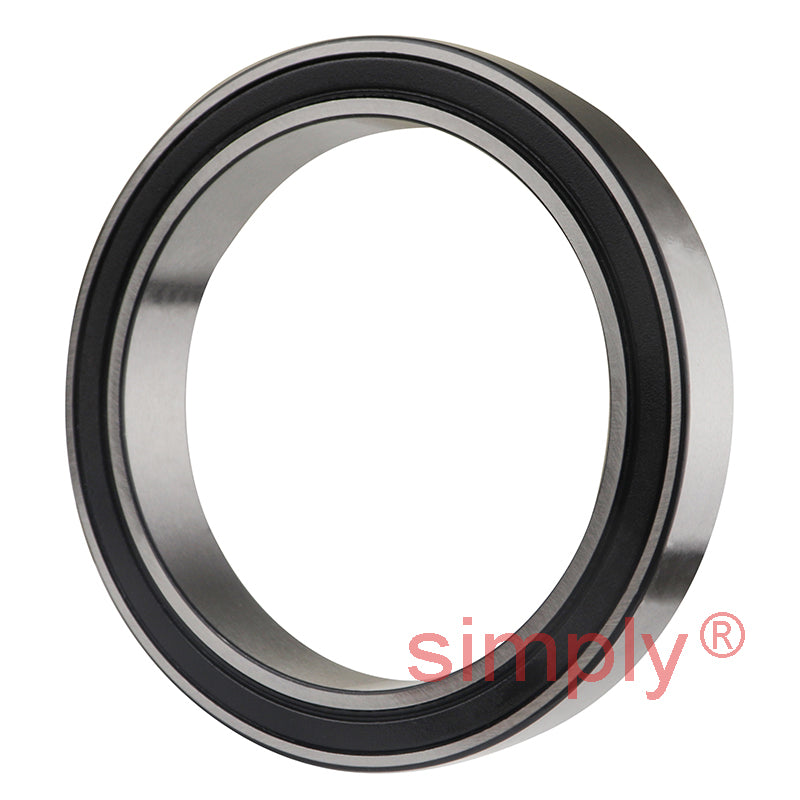

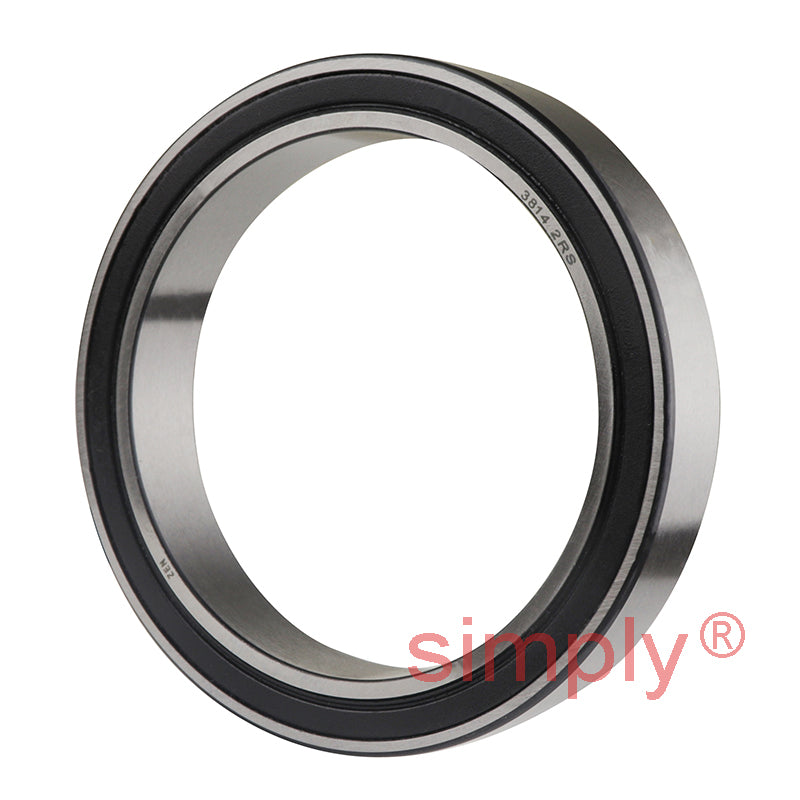

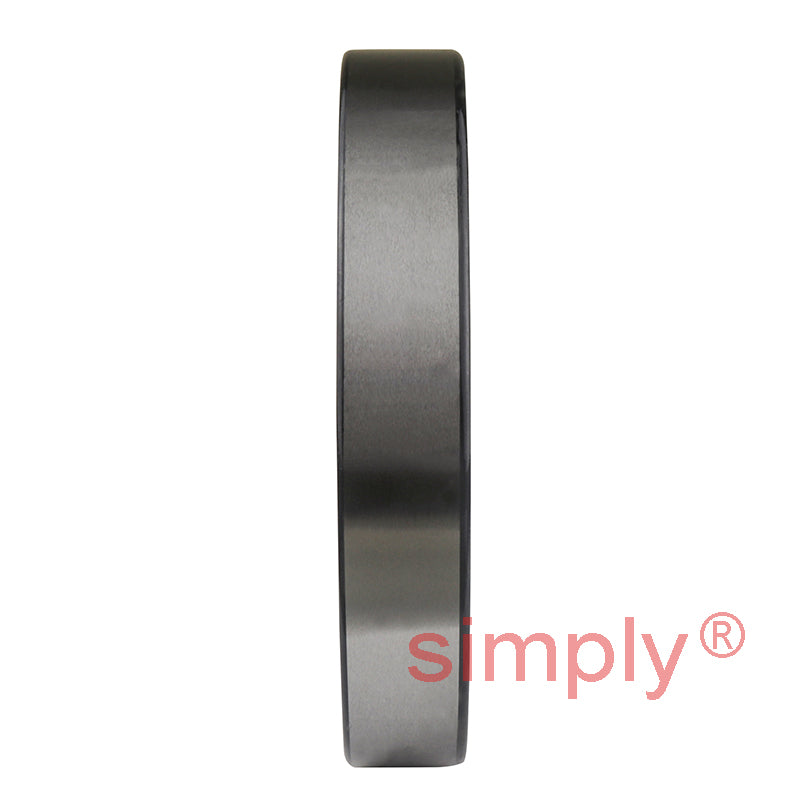

• Budget 3814B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 70x90x15mm
  • Budget 3814B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 70x90x15mm
  • Budget 3814B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 70x90x15mm
1 3

SKU: 3814.B.2RSR.TVH.EU

Budget 3814B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 70x90x15mm

Budget 3814B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 70x90x15mm
$73.53 ex VAT
$73.53 ex VAT
Sale Sold out

Equivalent to: 5814B2RSRTVH

Low stock

Price Break
10+ $49.25
19+ $46.49
29+ $45.93
39+ $45.38
49+ $44.83
74+ $44.27
99+ $41.51
199+ $40.95
249+ $40.40
499+ $39.84
999+ $38.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Outside Diameter:
90mm
Width:
15mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 70mm
D 90mm
B 15mm
a 38.5mm
d1 max 76.5mm
Da max 86.8mm
da min 73.2mm
ra max 0.6mm
r min 0.6mm
Contact angle ? 25°
Weight 0.19 kg
Dynamic load Cr 19200 N
Static load Cor 23800 N
Fatigue limit load Cur 1300 N
Reference speed 3400 rpm
Limiting Speed 4100 rpm
