SKU: 384-3MGT3-9

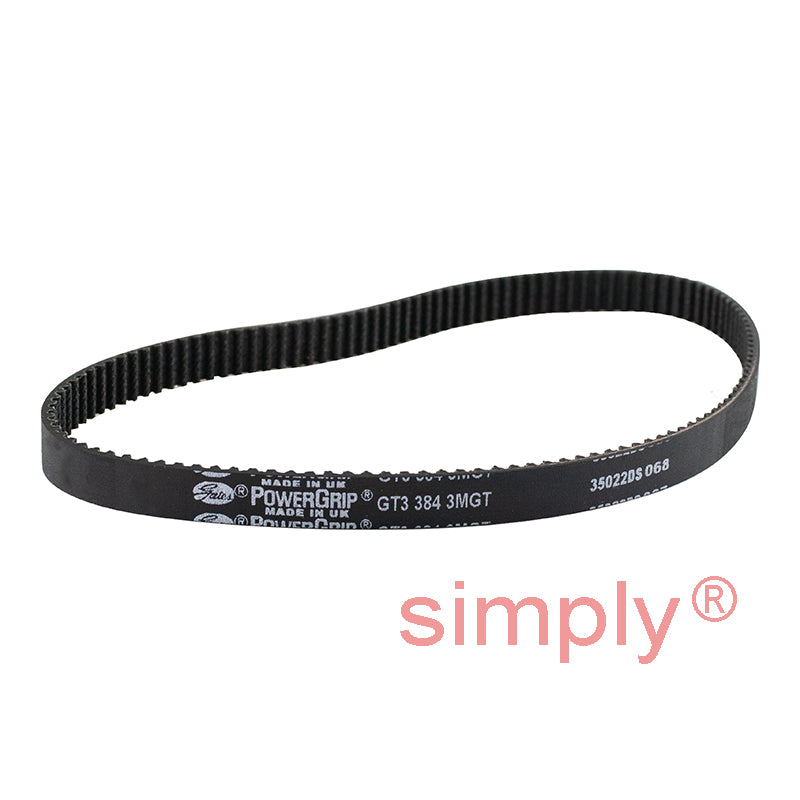

384-3MGT3-9 Gates PowerGrip Synchronous Belt 9mm Wide 3mm Pitch 128 Teeth
- Regular price
- $19.87 ex VAT
- Sale price
- $19.87
- Regular price
-
Quantity Price Breaks
384-3MGT3-9 Gates PowerGrip Synchronous Belt 9mm Wide 3mm Pitch 128 Teeth
- Regular price
- $19.87 ex VAT
- Sale price
- $19.87
- Regular price
-
Description
GT3 PowerGrip Synchronous Drive Belts 2mm Pitch: PowerGrip GT3 belts are made of a highly advanced combination of materials designed to reduce both initial and operating costs. The entire PowerGrip GT3 belt range is suited both for new drive designs as well as for performance upgrades on existing drives. The 2MGT, 3MGT and 5MGT pitches are ideal for compact drives on hand tools, business machines, domestic appliances and high precision servomotor drives.
Benefits: Maintenance-free, clean solution for roller chain drive conversion, No lubrication required, No retensioning required, Operating temperature range: 30 deg C to +100 deg C
Technical
| Tooth Pitch t | = | 3mm |
| Pitch Length | = | 384mm |
| Belt Thickness hs | = | 2.41mm |
| Width | = | 9mm |
| Teeth | = | 128 |
| Tooth Height ht | = | 1.12mm |
| Temperature Range | = | -30 deg C to +100 deg C |
| Cord Type | = | Fibreglass |
| Material | = | CR |
