SKU: 390H-100-78

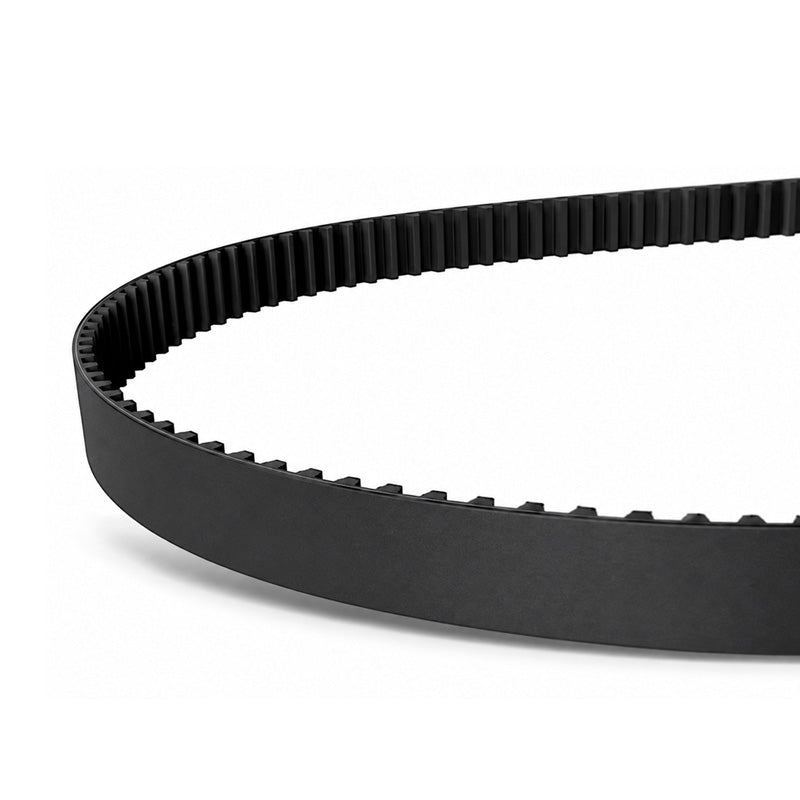

390H100 Major Brand Synchronous Toothed Belt 1.00 inch Wide 39 inch Length 78 Teeth
- Regular price
- $16.57 ex VAT
- Sale price
- $16.57
- Regular price
-
In stock
Quantity Price Breaks
3
$14.75
5
$13.92
10
$13.75
15
$13.59
20
$13.42
30
$13.26
40
$12.43
50
$12.26
60
$12.10
75
$11.93
100
$11.60
SKU:
390H-100-78
390H100 Major Brand Synchronous Toothed Belt 1.00 inch Wide 39 inch Length 78 Teeth
- Regular price
- $16.57 ex VAT
- Sale price
- $16.57
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 1.00 inch = 25.40mm |
| Pitch length | = | 39 inch = 990.6mm |
| Number of teeth | = | 78 |
| Tooth pitch t | = | 0.5 inch |
| Flank angle f | = | 40 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.09015748 inch | |
| Pitch zone u | = | 0.027007874 inch |
