SKU: 392XL-025-196

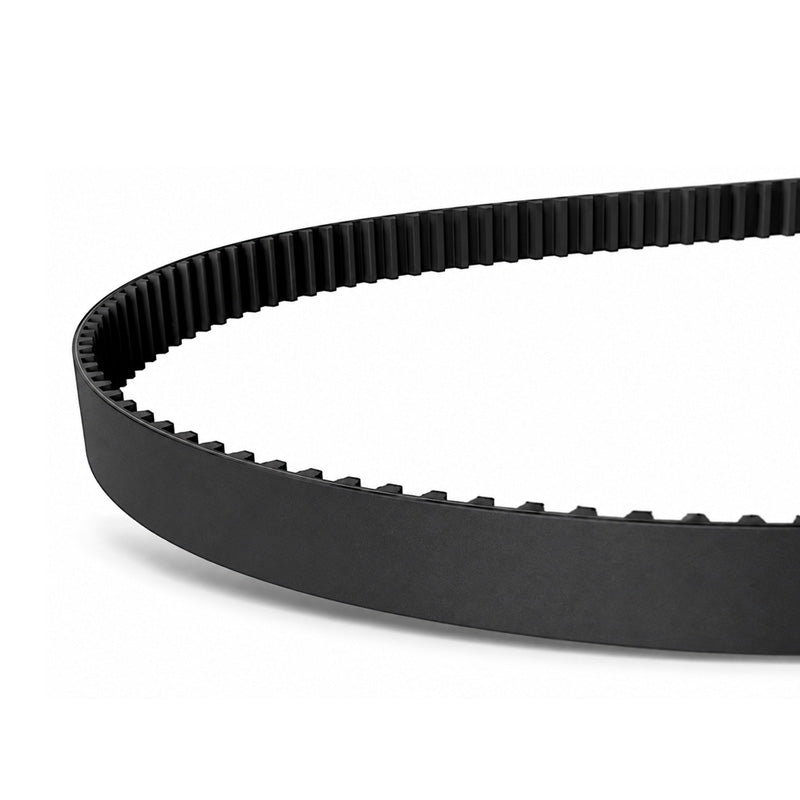

392XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- $6.44 ex VAT
- Sale price
- $6.44
- Regular price
-
In stock
Quantity Price Breaks
3
$5.73
5
$5.41
10
$5.35
15
$5.28
20
$5.22
30
$5.15
40
$4.83
50
$4.77
60
$4.70
75
$4.64
100
$4.51
SKU:
392XL-025-196
392XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- $6.44 ex VAT
- Sale price
- $6.44
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.25 inch = 6.35mm |
| Pitch length | = | 39.2 inch = 995.68mm |
| Number of teeth | = | 196 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
