SKU: 392XL-037-196

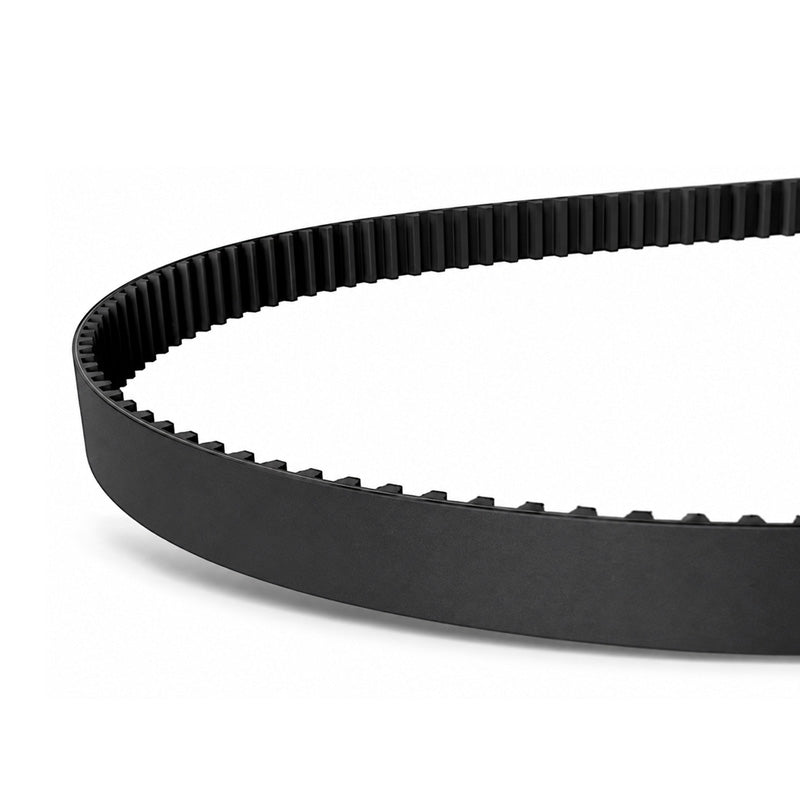

392XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- $7.71 ex VAT
- Sale price
- $7.71
- Regular price
-
In stock
Quantity Price Breaks
3
$6.86
5
$6.48
10
$6.40
15
$6.32
20
$6.25
30
$6.17
40
$5.78
50
$5.71
60
$5.63
75
$5.55
100
$5.40
SKU:
392XL-037-196
392XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- $7.71 ex VAT
- Sale price
- $7.71
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.38 inch = 9.53mm |
| Pitch length | = | 39.2 inch = 995.68mm |
| Number of teeth | = | 196 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
