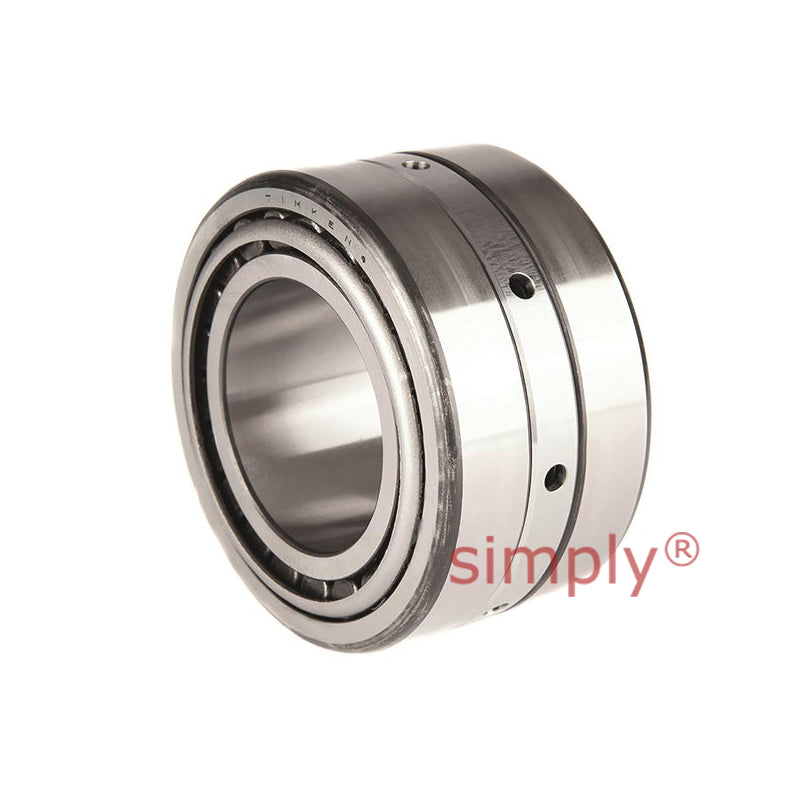

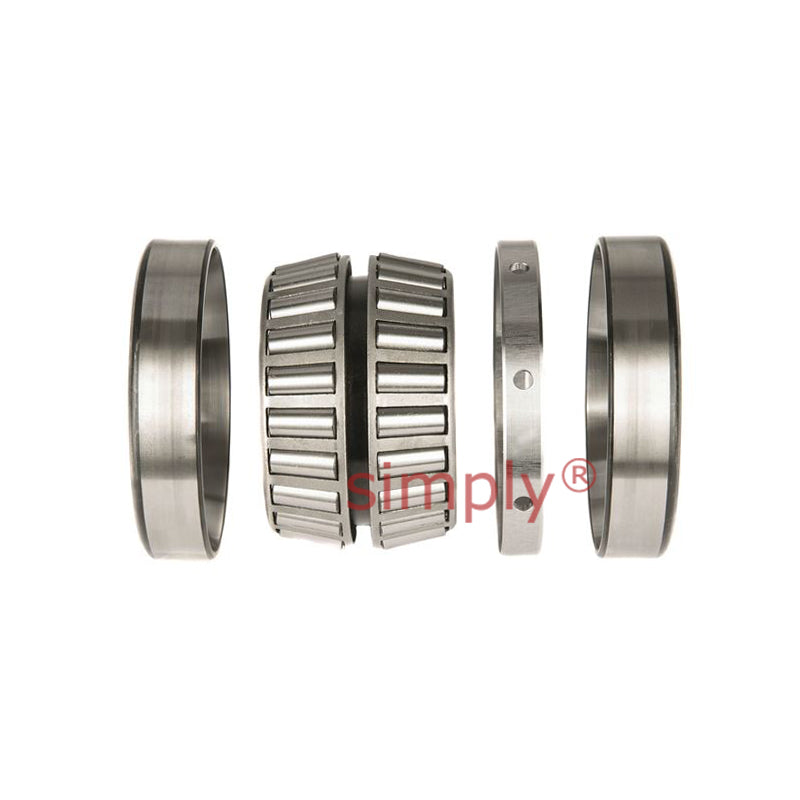

• Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
  • Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
  • Timken
1 3

SKU: 399D/394AS-TIM

Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch

Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
$576.88 ex VAT
$576.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $386.41
20+ $364.70
30+ $360.36
40+ $356.02
50+ $351.67
75+ $347.33
100+ $325.62
200+ $321.28
250+ $316.94
500+ $312.60
1000+ $303.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
110mm = 4.331 inch
Width:
55.56mm = 2.187 (2-3/16) inch
Technical
d 61.912mm = 2.4375 inch
D 110mm = 4.3307 inch
T 55.55mm = 2.187 inch
C 55.55mm = 2.187 inch
Dynamic (1) C1 159000N
Factors (5) e 0.4
Factors (5) Y1 1.68
Factors (5) Y2 2.5
Dynamic (2) C90 23700N
Dynamic (2) Ca90 16300N
Dynamic (2) C90(2) 41300N
Factors (5) K 1.45
Shaft max shaft fillet radius R (3) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 70mm = 2.76 inch
Housing max shaft fillet radius r (3) 3.3mm = 0.13 inch
Housing backing shoulder diameter Db 99mm = 3.9 inch
G1 56
G2 21.4
Cg 0.0984
