SKU: 3SS316-JUB

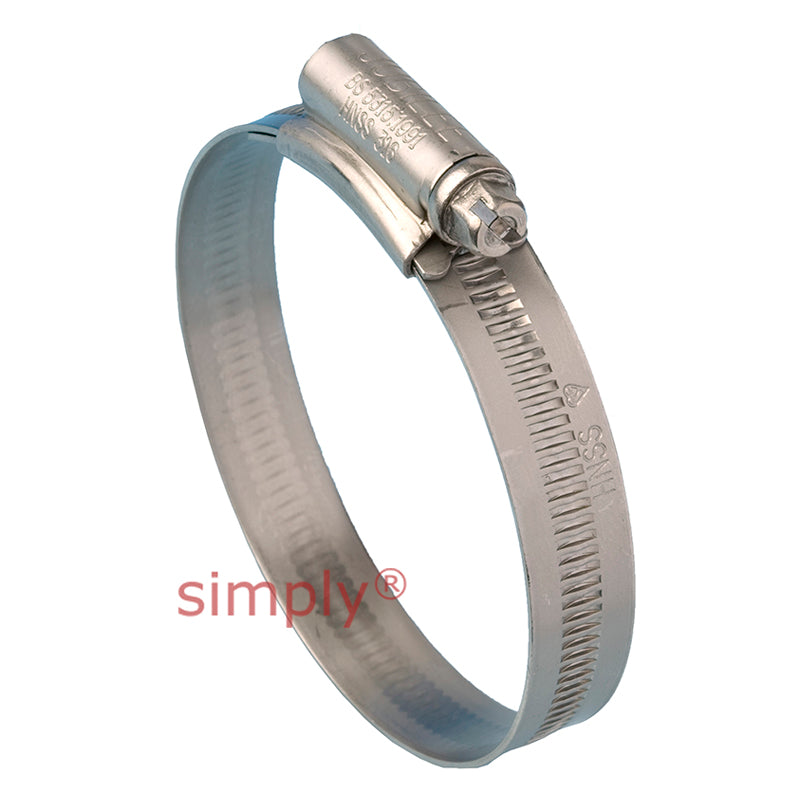

3SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 55mm-70mm Band Width 13mm
- Regular price
- $9.43 ex VAT
- Sale price
- $9.43
- Regular price
-
In stock
Quantity Price Breaks
3
$8.39
5
$7.92
9
$7.83
19
$7.73
49
$7.64
74
$7.54
99
$7.07
199
$6.98
249
$6.88
499
$6.79
999
$6.60
SKU:
3SS316-JUB
3SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 55mm-70mm Band Width 13mm
- Regular price
- $9.43 ex VAT
- Sale price
- $9.43
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

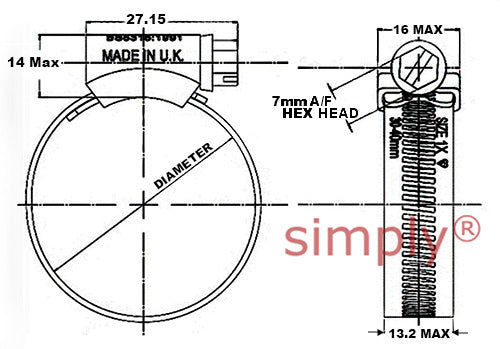

Technical
| BS No. | = | 70 |
| Adjustment Range | = | 55mm - 70mm |
| Adjustment Range | = | 2-1/8 - 2-3/4 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 6.7Nm |
| Maximum Torque | = | 9Nm |
| Maximum Pressure | = | 102 Psi |
