SKU: 40-1-NO30-MB
Branded 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $6.27 ex VAT
- Sale price
- $6.27
- Regular price
-
In stock
Quantity Price Breaks
2
$5.58
5
$5.27
10
$5.20
29
$5.14
49
$5.08
75
$5.02
100
$4.70
200
$4.64
250
$4.58
500
$4.51
1000
$4.39
SKU:
40-1-NO30-MB
Branded 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $6.27 ex VAT
- Sale price
- $6.27
- Regular price
-
Description

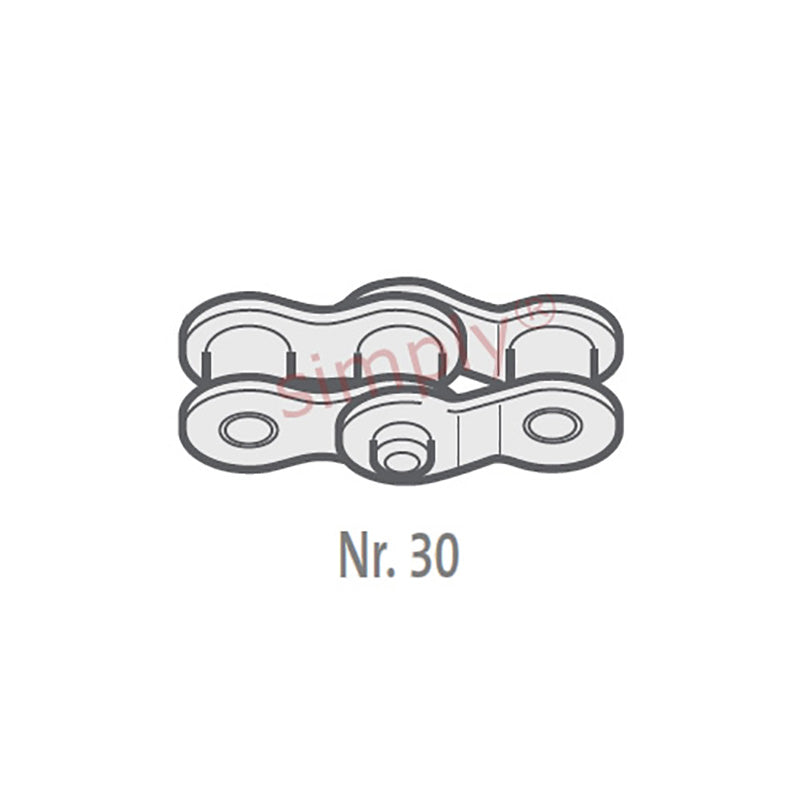

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.95mm |
| Plate Height max (D) | = | 11.9mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H1) | = | 16.6mm |
| Connecting Link Extension max (J) | = | 1.15mm |
| ISO606 Tensile Strength min | = | 13900 N |
| Weight | = | 0.01kg/m |
