Branded 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Branded 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
$6.40
ex VAT
Regular price
Sale price
$6.40
ex VAT
Equivalent to: 40-2-OL
In stock
Price Break
2+
$4.29
5+
$4.05
10+
$4.00
29+
$3.95
49+
$3.90
75+
$3.85
100+
$3.61
200+
$3.57
250+
$3.52
500+
$3.47
1000+
$3.37
Quantity
Couldn't load pickup availability
Description
Description

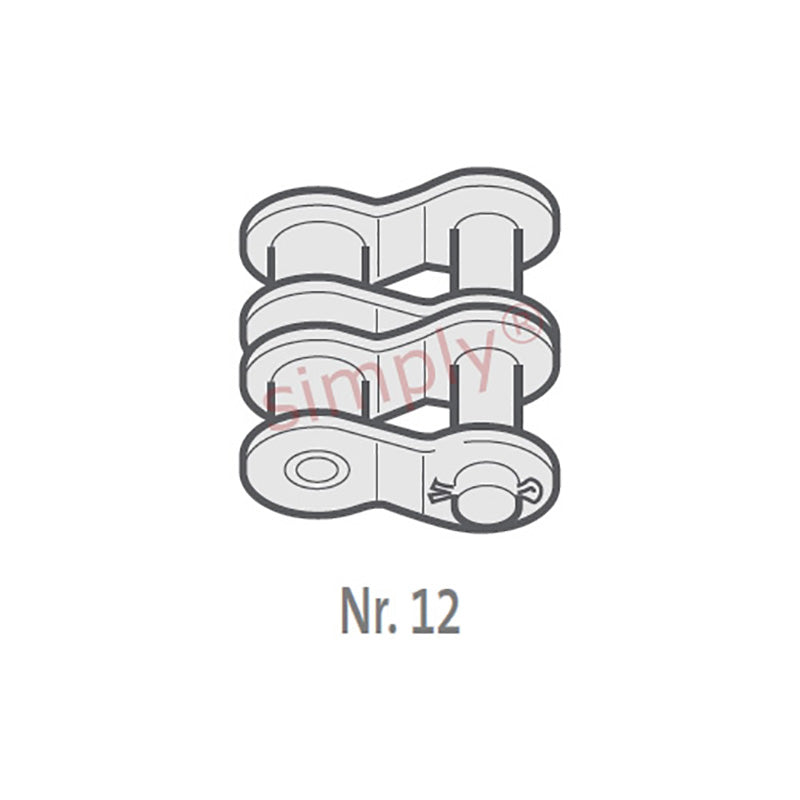

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 31.1mm |
| Connecting Link Extension max (J) | 1.15mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
