SKU: 40-2-SYN-NO11-RENOLD
Renold Synergy 40-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $26.02 ex VAT
- Sale price
- $26.02
- Regular price
-
Not in stock
Quantity Price Breaks
2
$23.16
5
$21.86
10
$21.60
29
$21.34
49
$21.08
75
$20.82
100
$19.52
200
$19.25
250
$18.99
500
$18.73
1000
$18.21
SKU:
40-2-SYN-NO11-RENOLD
Renold Synergy 40-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $26.02 ex VAT
- Sale price
- $26.02
- Regular price
-
Description

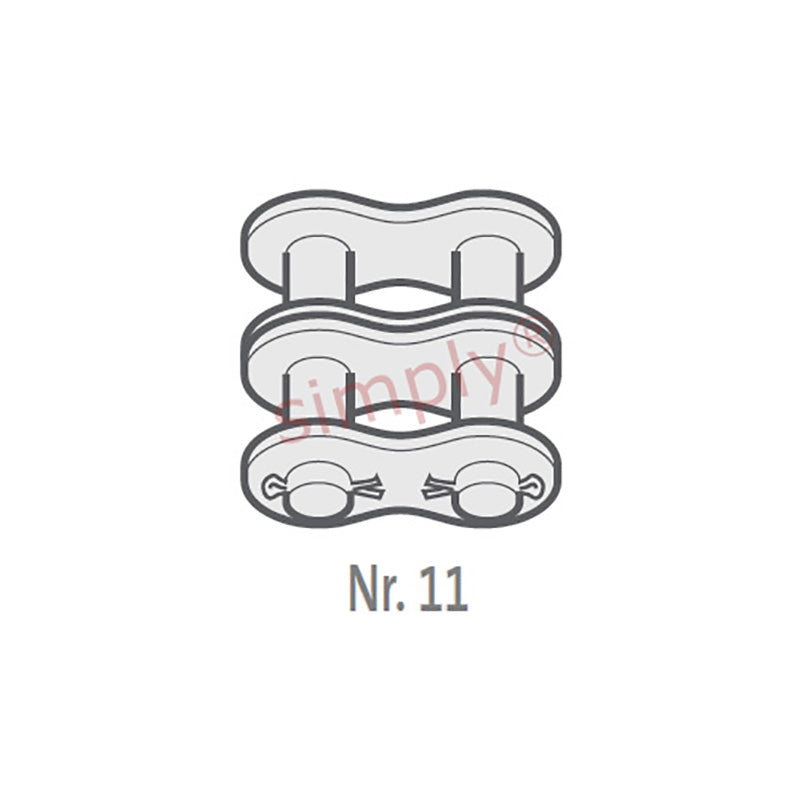

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 30.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
