Branded 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Branded 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
$5.78
ex VAT
Regular price
Sale price
$5.78
ex VAT
Equivalent to: 40-3-CL
In stock
Price Break
2+
$3.87
5+
$3.65
10+
$3.61
29+
$3.56
49+
$3.52
75+
$3.48
100+
$3.26
200+
$3.22
250+
$3.17
500+
$3.13
1000+
$3.04
Quantity
Couldn't load pickup availability
Description
Description

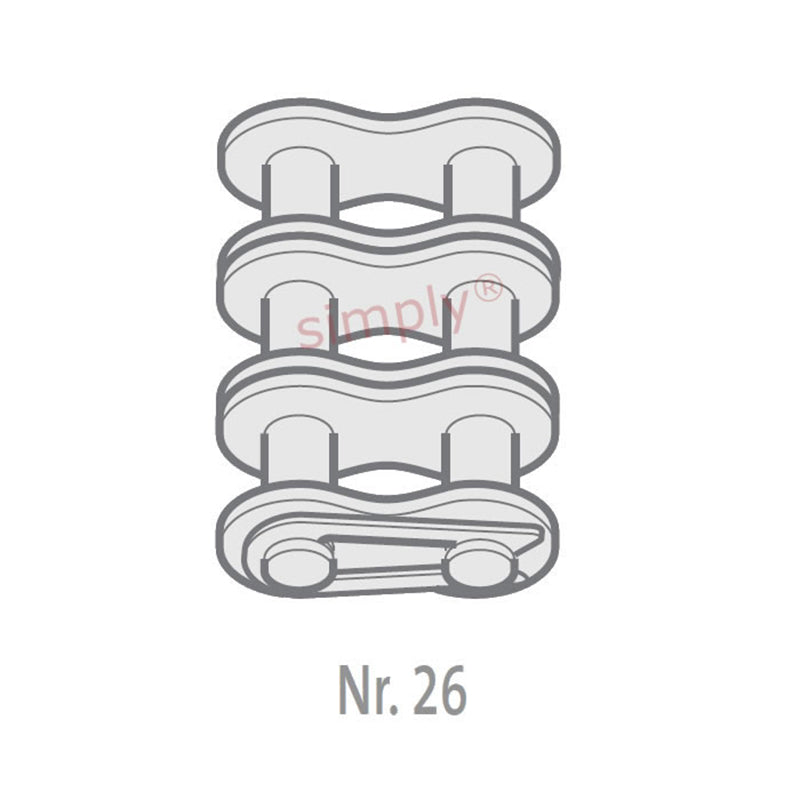

Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical

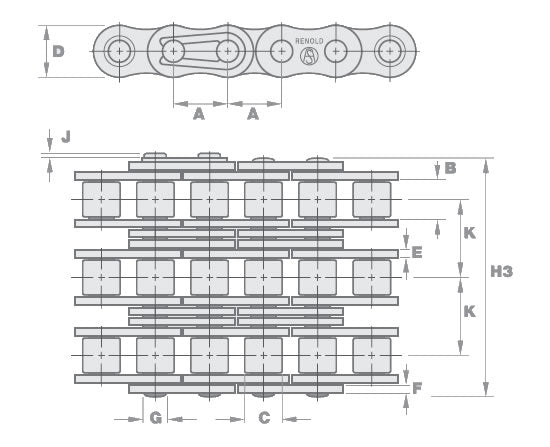

| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H1) | 45.2mm |
| Connecting Link Extension max (J) | 3.45mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 14.38kg/m |
