• Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
  • Renold
1 2

SKU: 40-3-SD-NO26-RENOLD

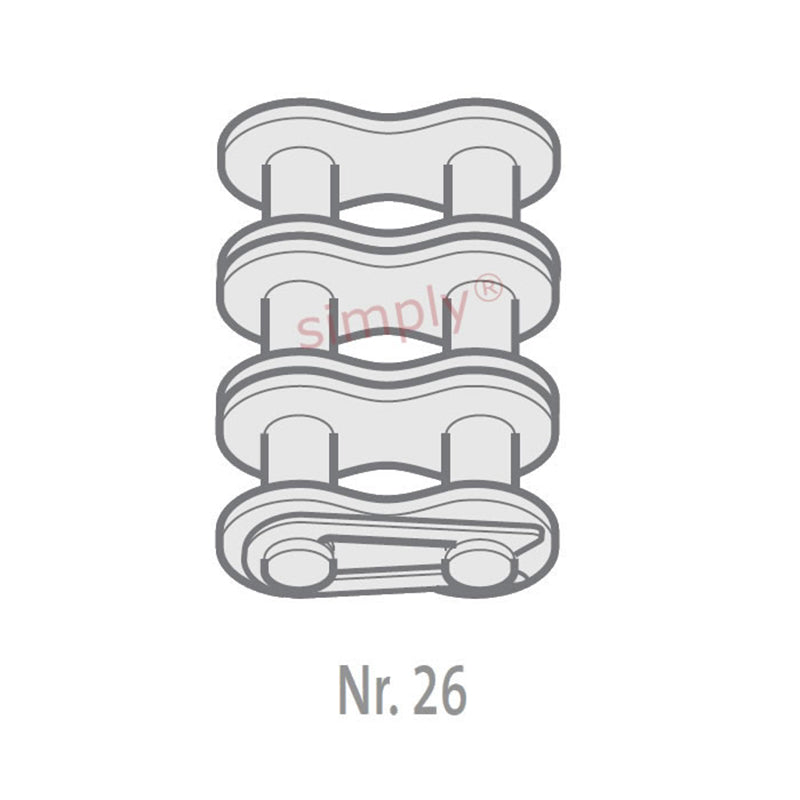

Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch

Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
$10.38 ex VAT
$10.38 ex VAT
Sale Sold out

In stock

Price Break
2+ $6.95
5+ $6.56
10+ $6.48
29+ $6.40
49+ $6.33
75+ $6.25
100+ $5.86
200+ $5.78
250+ $5.70
500+ $5.62
1000+ $5.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.85mm
Roller Diameter max (C) 7.95mm
Plate Height max (D) 11.9mm
Plate Width Inner max (E) 1.5mm
Plate Width Outer max (F) 1.5mm
Pin Diameter max (G) 3.96mm
Pin Length max (H1) 45.2mm
Connecting Link Extension max (J) 3.45mm
ISO606 Tensile Strength min 41700 N
Weight 14.38kg/m
