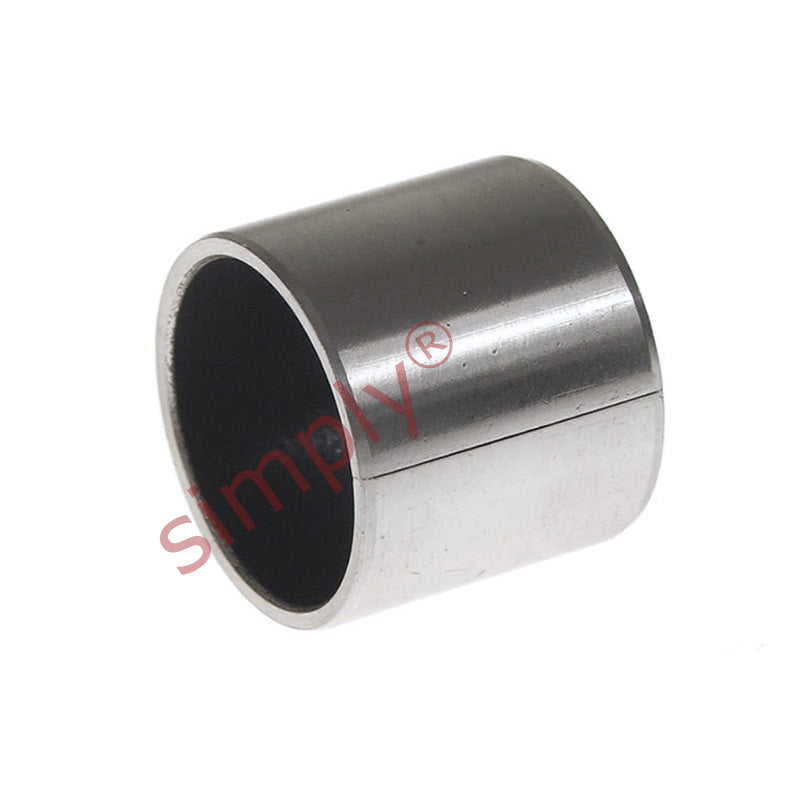

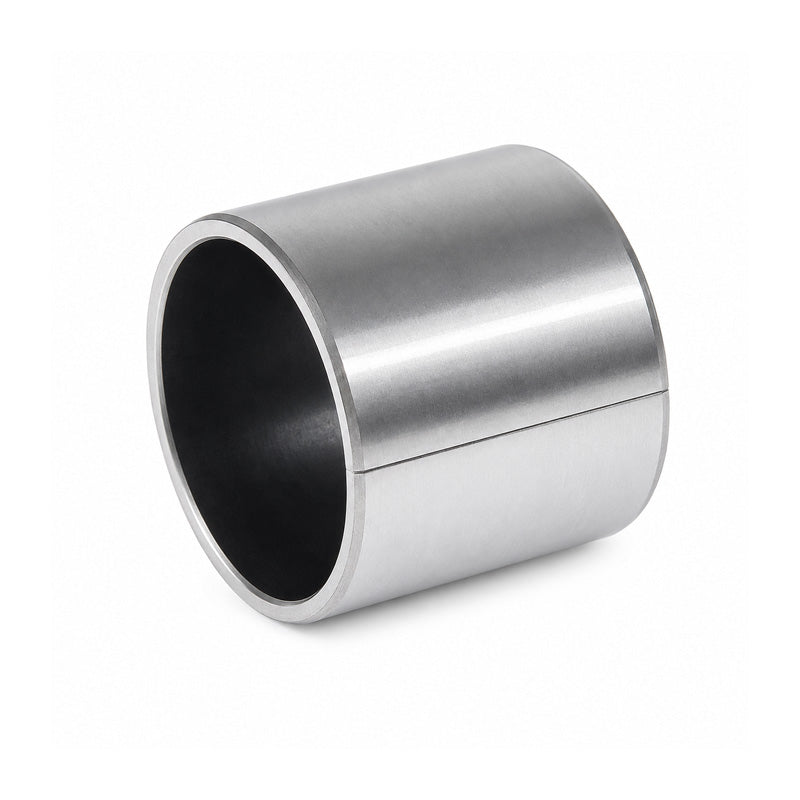

• 40D32 Wrapped Steel Bush 2-1/2x2-11/16x2 inch
1 1

SKU: 40.DLU.32

40D32 Wrapped Steel Bush 2-1/2x2-11/16x2 inch

40D32 Wrapped Steel Bush 2-1/2x2-11/16x2 inch
$11.51 ex VAT
$11.51 ex VAT
Sale Sold out

Equivalent to: PAPZ4032P10

In stock

Price Break
9+ $7.71
19+ $7.28
29+ $7.19
39+ $7.10
49+ $7.02
69+ $6.93
99+ $6.50
199+ $6.41
249+ $6.33
499+ $6.24
999+ $6.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Outside Diameter:
68.26mm = 2.687 (2-11/16) inch
Length:
50.8mm = 2 inch
Technical
d 2-1/2 inch
D 2-11/16 inch
b 2 inch
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
