• 400X5SPA 400mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 400X5SPA 400mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 400SPA5-MB

400X5SPA 400mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

400X5SPA 400mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$159.15 ex VAT
$159.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $106.60
5+ $100.62
9+ $99.42
19+ $98.22
49+ $97.02
74+ $95.82
99+ $89.84
199+ $88.64
249+ $87.44
499+ $86.24
999+ $83.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
406.2mm
Pitch Diameter:
400mm
Max Bore:
90mm

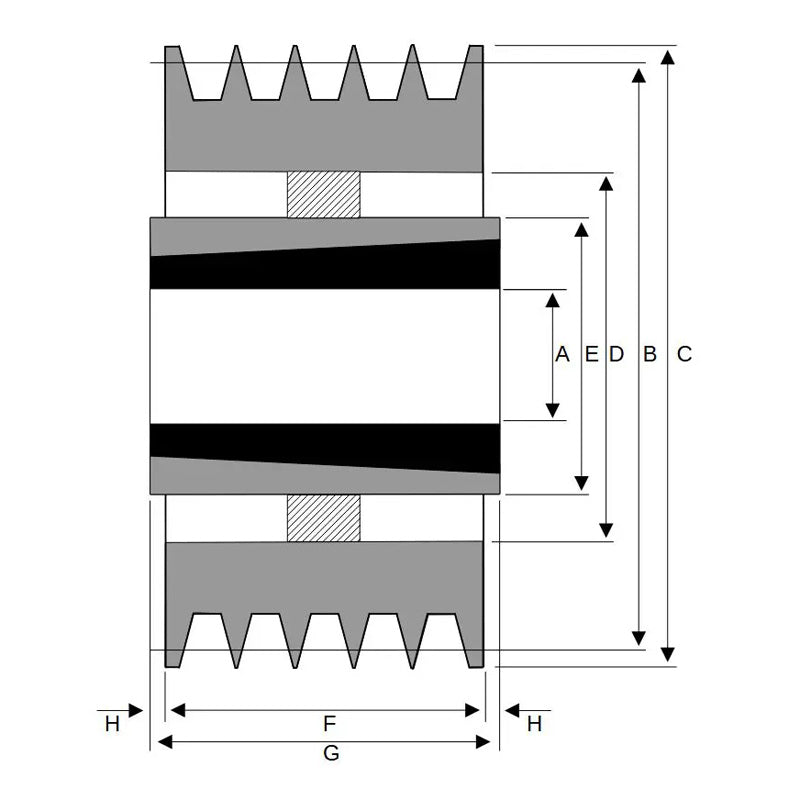

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 406.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 80mm
Bush Seat Length G 65mm
Inner Recess Diameter D 365mm
Inner Recess Length H 4.5mm
