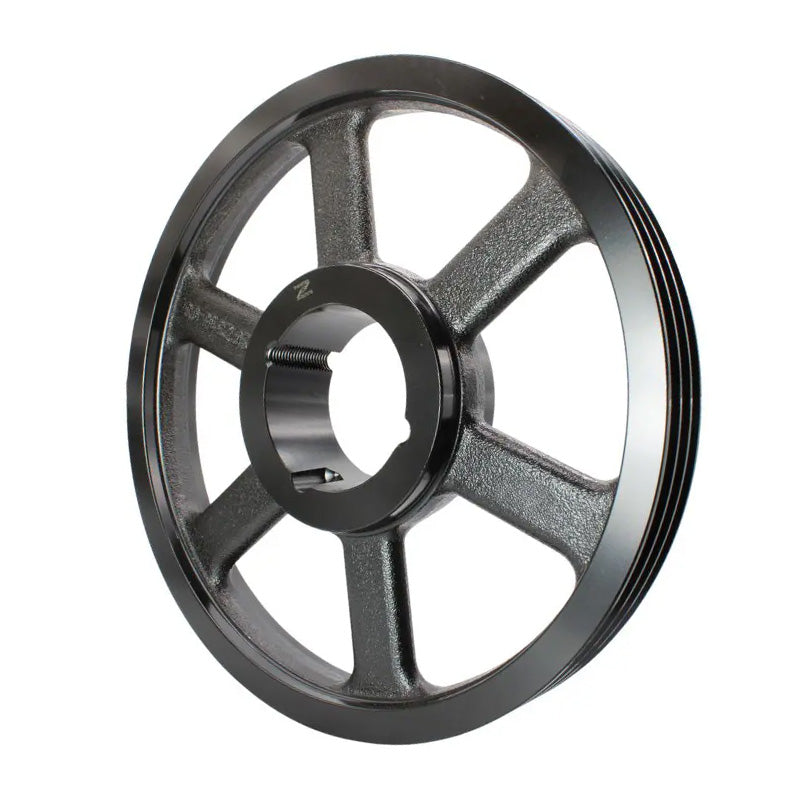

• 400X3SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 400X3SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 400SPB3-MB

400X3SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

400X3SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$166.80 ex VAT
$166.80 ex VAT
Sale Sold out

In stock

Price Break
3+ $111.73
5+ $105.46
9+ $104.20
19+ $102.94
49+ $101.69
74+ $100.43
99+ $94.16
199+ $92.90
249+ $91.65
499+ $90.39
999+ $87.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
407.6mm
Pitch Diameter:
400mm
Max Bore:
90mm
Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 407.6mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 63mm
Bush Seat Length G 89mm
Inner Recess Diameter D 357mm
Inner Recess Length H 13mm
