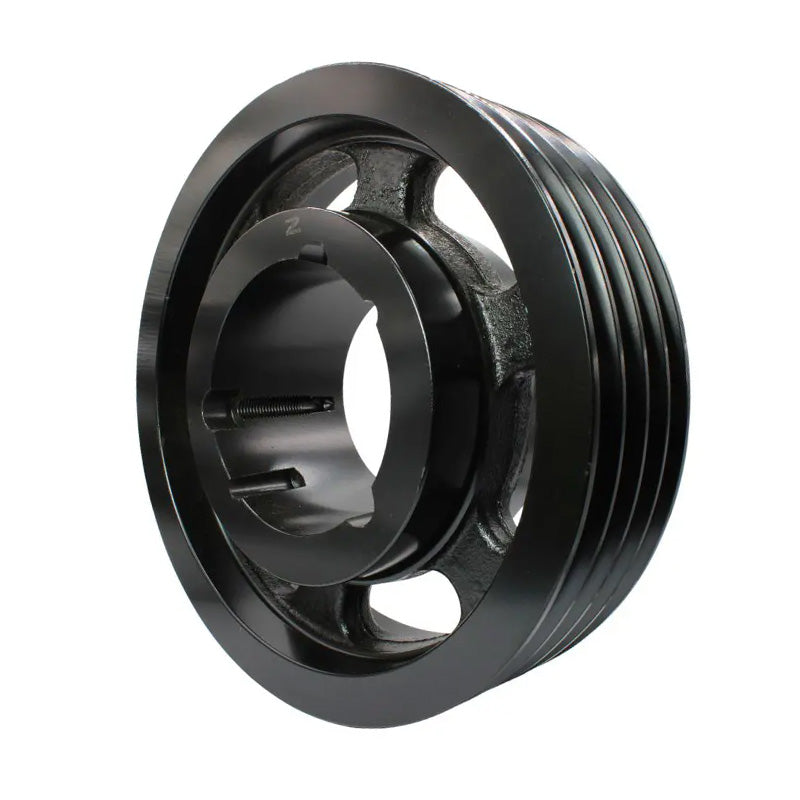

• 400X4SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 400X4SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 400SPB4-MB

400X4SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

400X4SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$193.79 ex VAT
$193.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $129.81
5+ $122.51
9+ $121.05
19+ $119.60
49+ $118.14
74+ $116.68
99+ $109.39
199+ $107.93
249+ $106.47
499+ $105.01
999+ $102.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
407.6mm
Pitch Diameter:
400mm
Max Bore:
100mm

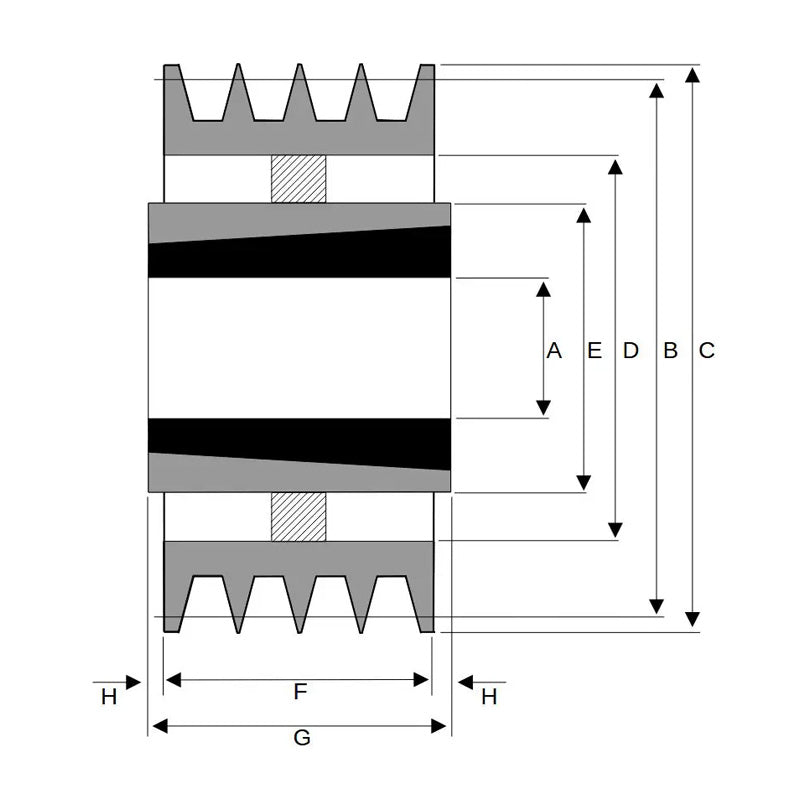

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 407.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 82mm
Bush Seat Length G 65mm
Inner Recess Diameter D 357mm
Inner Recess Length H 3.5mm
