• 400X5SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 400X5SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 400SPB5-MB

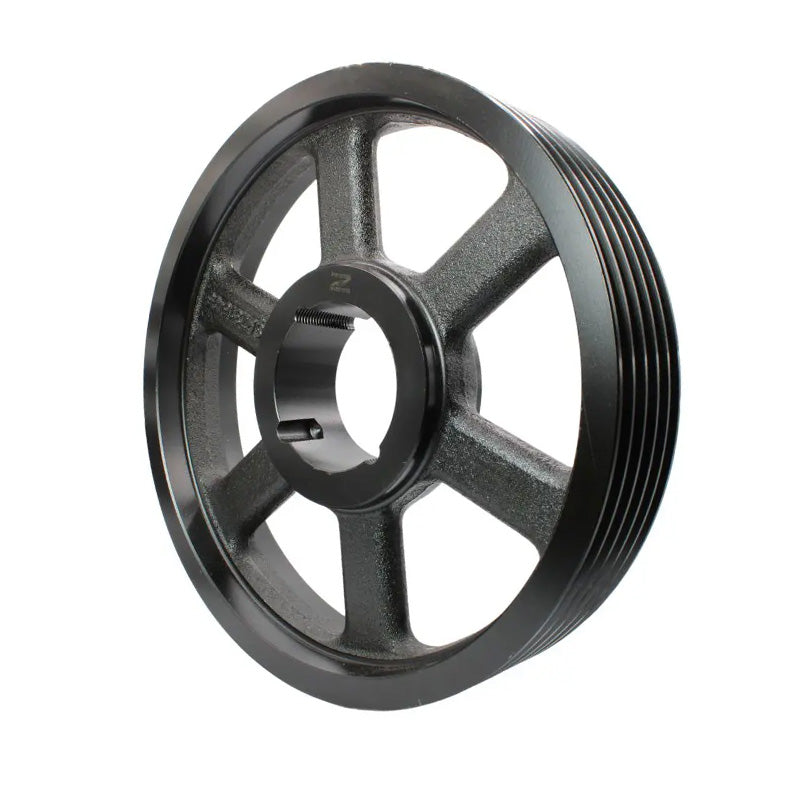

400X5SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

400X5SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$216.13 ex VAT
$216.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $144.77
5+ $136.64
9+ $135.01
19+ $133.38
49+ $131.76
74+ $130.13
99+ $122.00
199+ $120.37
249+ $118.74
499+ $117.12
999+ $113.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
407.6mm
Pitch Diameter:
400mm
Max Bore:
100mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 407.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 101mm
Bush Seat Length G 65mm
Inner Recess Diameter D 357mm
Inner Recess Length H 6mm
