• 400X6SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 400X6SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 400SPB6-MB

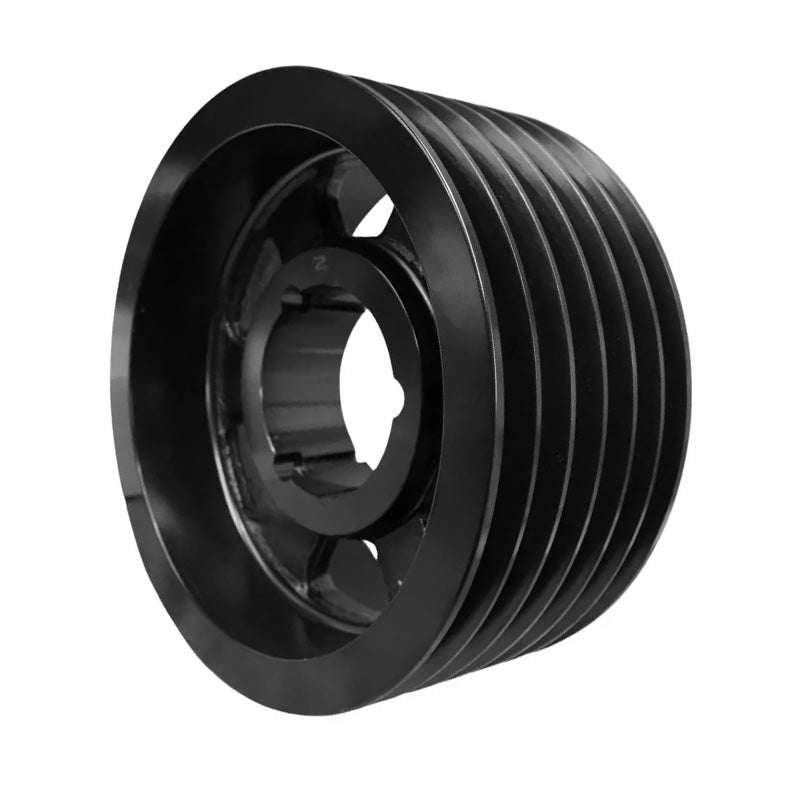

400X6SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

400X6SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$249.60 ex VAT
$249.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $167.19
5+ $157.80
9+ $155.92
19+ $154.04
49+ $152.16
74+ $150.28
99+ $140.89
199+ $139.01
249+ $137.13
499+ $135.25
999+ $131.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
407.6mm
Pitch Diameter:
400mm
Max Bore:
100mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 407.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 120mm
Bush Seat Length G 65mm
Inner Recess Diameter D 357mm
Inner Recess Length H 15.5mm
