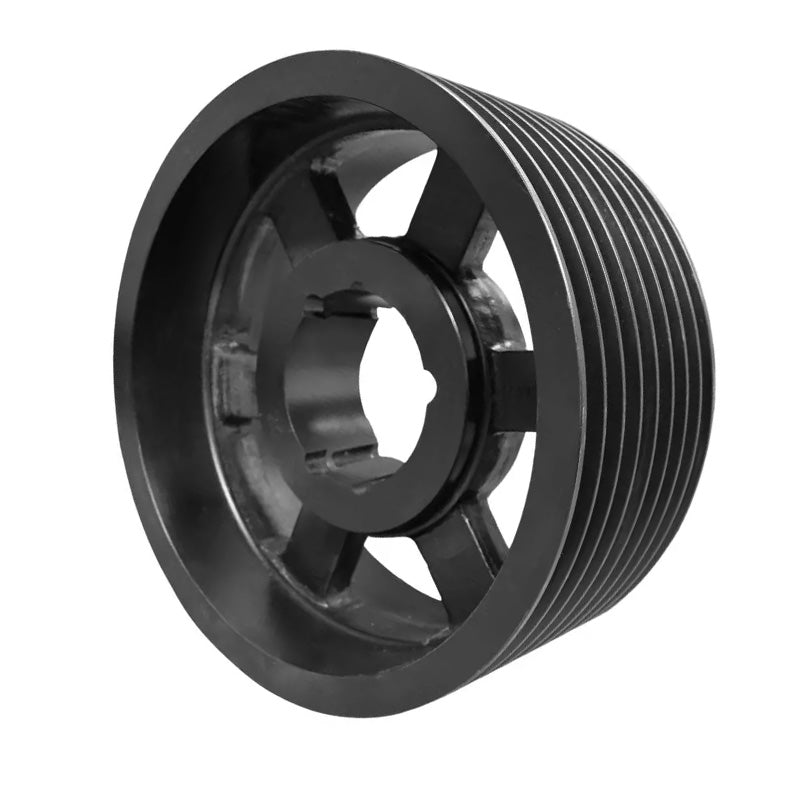

• 400X8SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
  • 400X8SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 2

SKU: 400SPB8-MB

400X8SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

400X8SPB 400mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$350.50 ex VAT
$350.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $234.77
5+ $221.58
9+ $218.94
19+ $216.31
49+ $213.67
74+ $211.03
99+ $197.84
199+ $195.20
249+ $192.56
499+ $189.93
999+ $184.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
407.6mm
Pitch Diameter:
400mm
Max Bore:
100mm

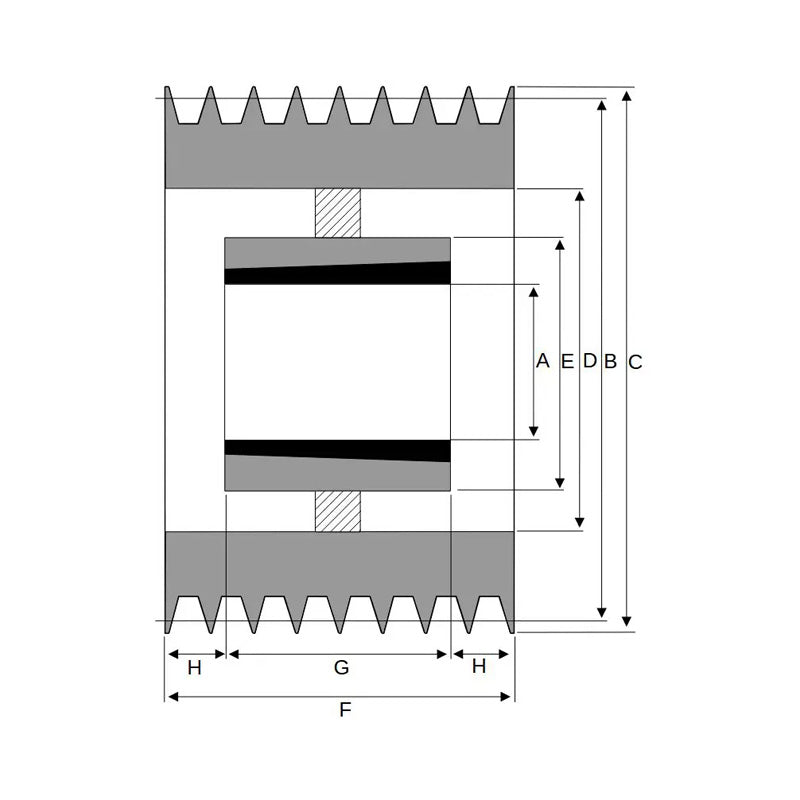

Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 407.6mm
Max Bore A 100mm
Outer Hub Diameter E 210mm
Overall Sheave Depth F 158mm
Bush Seat Length G 65mm
Inner Recess Diameter D 357mm
Inner Recess Length H 28mm
