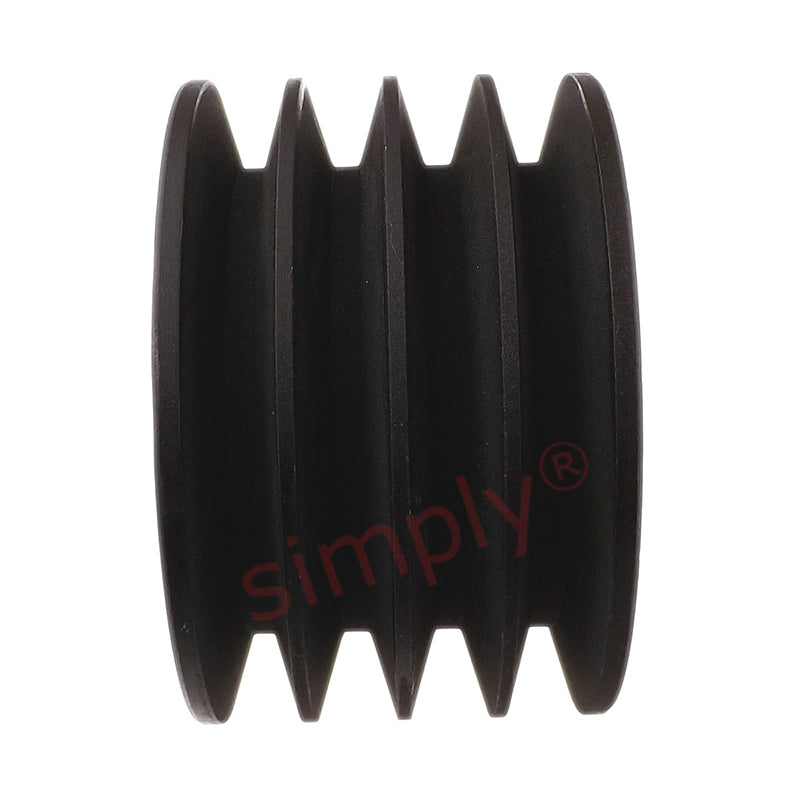

• 400X4SPC 400mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 400SPC4-MB

400X4SPC 400mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

400X4SPC 400mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$457.16 ex VAT
$457.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $306.22
5+ $289.02
9+ $285.58
19+ $282.14
49+ $278.70
74+ $275.26
99+ $258.05
199+ $254.61
249+ $251.17
499+ $247.73
999+ $240.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
410.2mm
Pitch Diameter:
400mm
Max Bore:
90mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a> or <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 410.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 111mm
Bush Seat Length G 65mm
Inner Recess Diameter D 343mm
Inner Recess Length H 23mm
