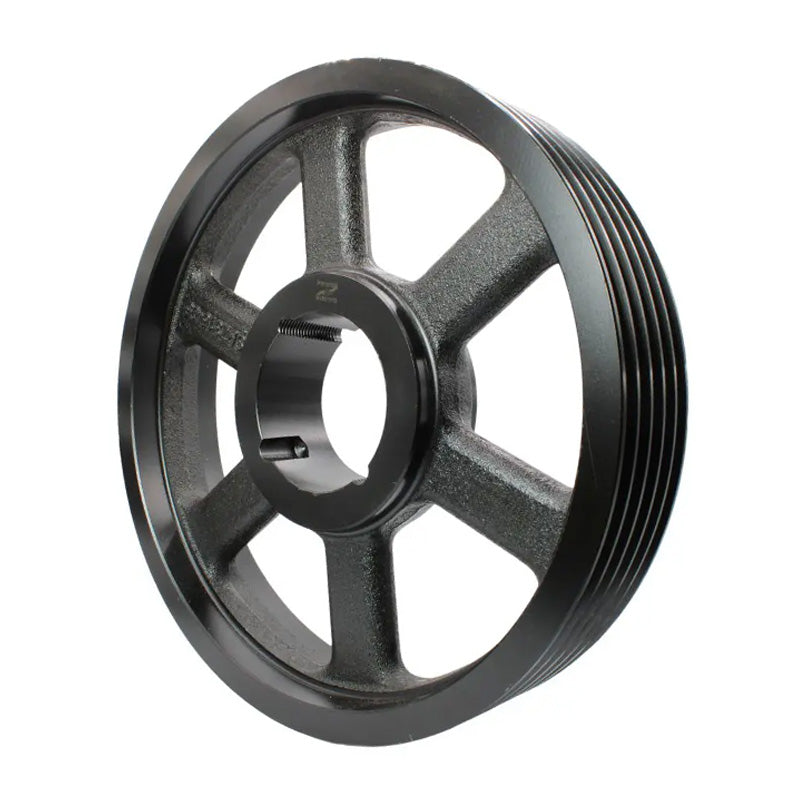

• 400X5SPZ 400mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 400SPZ5-MB

400X5SPZ 400mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

400X5SPZ 400mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$136.05 ex VAT
$136.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $91.13
5+ $86.01
9+ $84.98
19+ $83.96
49+ $82.93
74+ $81.91
99+ $76.79
199+ $75.77
249+ $74.74
499+ $73.72
999+ $71.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
404.6mm
Pitch Diameter:
400mm
Max Bore:
75mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 400mm
Overall Outer Diameter C 404.6mm
Max Bore A 75mm
Outer Hub Diameter E 146mm
Overall Sheave Depth F 64mm
Bush Seat Length G 51mm
Inner Recess Diameter D 371mm
Inner Recess Length H 6.5mm
