• Branded 40B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2-1/2 inch Pitch
1 1

SKU: 40B-2-NO12-MB

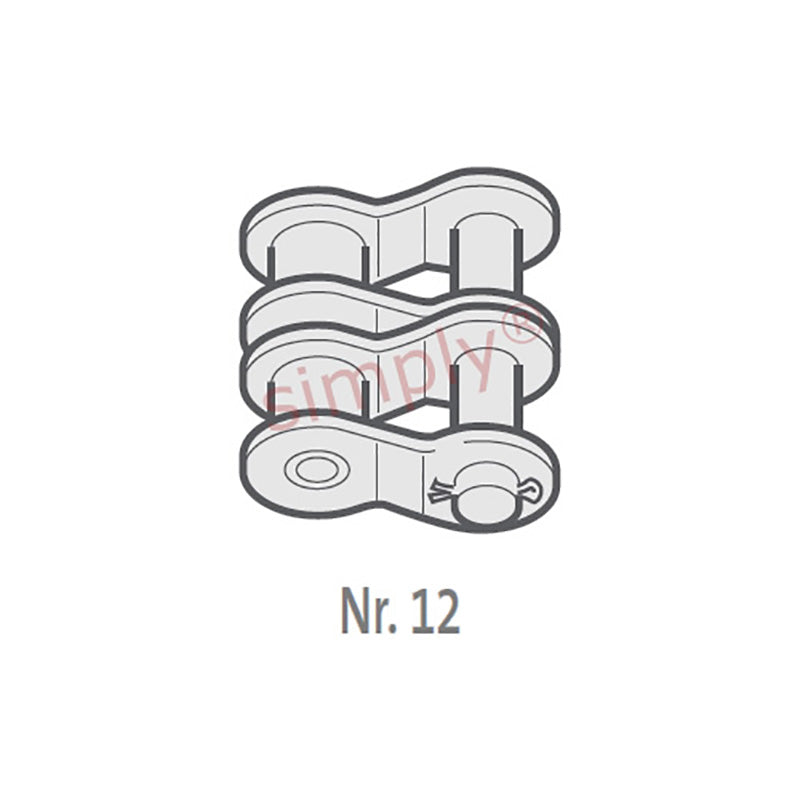

Branded 40B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2-1/2 inch Pitch

Branded 40B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2-1/2 inch Pitch
$87.91 ex VAT
$87.91 ex VAT
Sale Sold out

Equivalent to: 40B-2-OL

In stock

Price Break
2+ $58.88
5+ $55.58
10+ $54.91
29+ $54.25
49+ $53.59
75+ $52.93
100+ $49.62
200+ $48.96
250+ $48.30
500+ $47.64
1000+ $46.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
63.5mm = 2.5 (2-1/2) inch
Technical
Pitch (A) 2.5 inch
Pitch (A) 63.5mm
Inside Width min (B) 39.3mm
Roller Diameter max (C) 39.37mm
Plate Height max (D) 52.96mm
Plate Width Inner max (E) 8.13mm
Plate Width Outer max (F) 8.13mm
Pin Diameter max (G) 22.89mm
Pin Length max (H2) 150.5mm
Connecting Link Extension max (J) 9.5mm
Transverse Pitch nom (K) 72.29mm
ISO606 Tensile Strength min 630000 N
Weight 2kg/m
