SKU: 40x54x5_TM_NAK

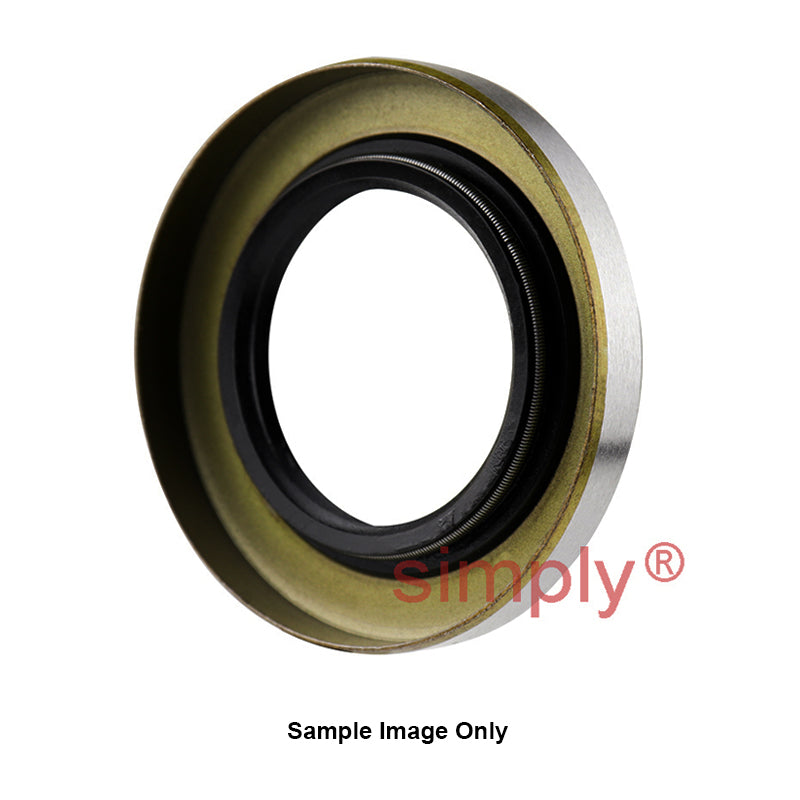

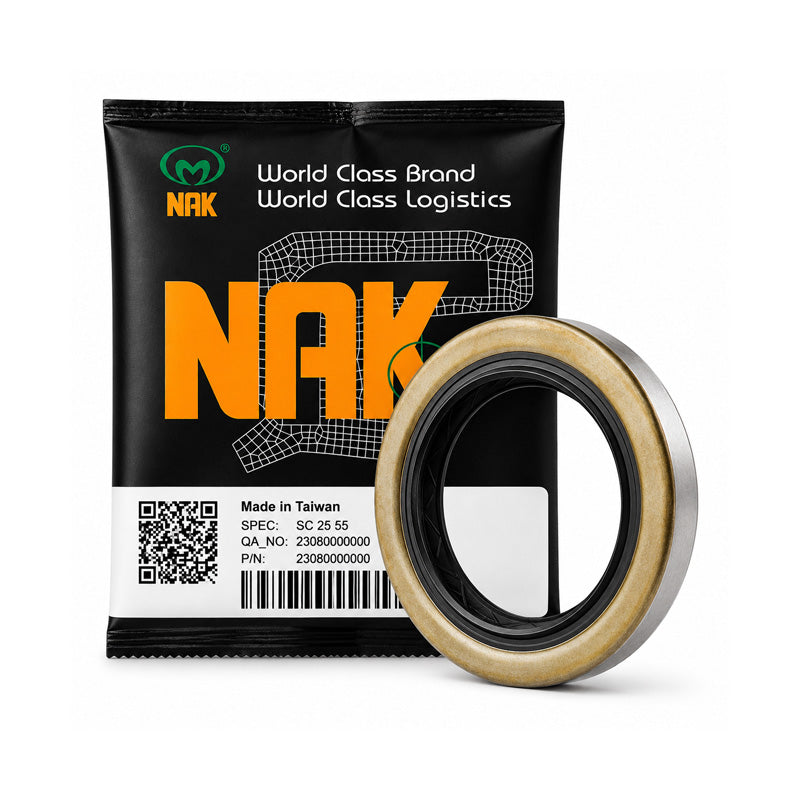

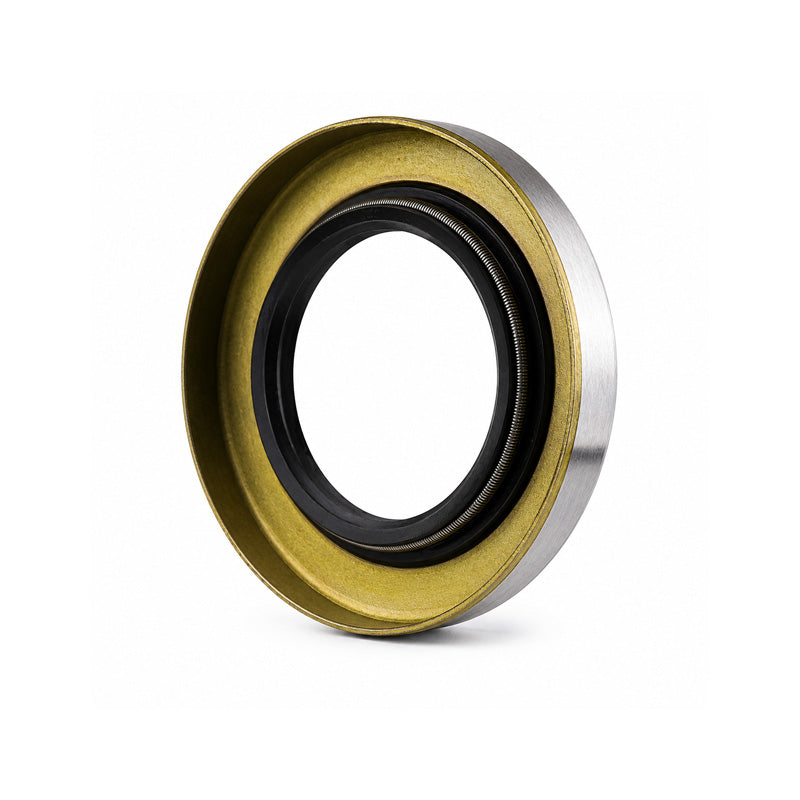

NAK 40x54x5mm Metal Cased Lead-in Chamfer Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TM
- Regular price
- $7.87 ex VAT
- Sale price
- $7.87
- Regular price
-
Quantity Price Breaks
NAK 40x54x5mm Metal Cased Lead-in Chamfer Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TM
- Regular price
- $7.87 ex VAT
- Sale price
- $7.87
- Regular price
-
Description
NAK TM Nitrile Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TM type seals are often used in larger shaft sizes or when a smaller shaft requires extra strength. This is due to the metal-cased outside diameter which has a very stable construction and offers a better-protected sealing member in comparison to the open-backed style. The TM type oil seals feature a lead-in chamfer and have an additional inner rubber lining particularly fit for protecting the case from erosive fluid. The TM features a sealing nitrile rubber lip on the insid (Seals under 5mm width may not always feature a spring.)
Benefits: Excellent wear resistance, good running properties, high resistance to chemicals and petroleum-based fuels including petrol, diesel and LPG.
Technical
| --- | = | Dimensions |
| Shaft Size (not inside diameter) d | = | 40mm |
| Outside Diameter (D) | = | 54mm |
| Width (b) | = | 5mm |
