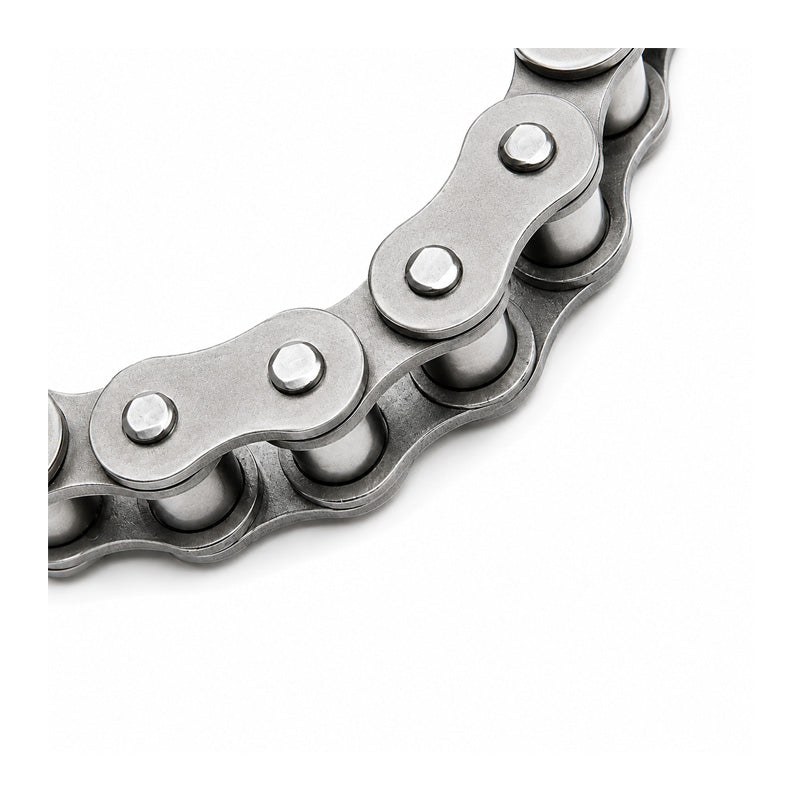

• Branded ANSI/ASA41-1 Narrow Section Simplex Roller Chain 1/2 inch Pitch 5 Metres
1 1

SKU: 41-1-5MTR-MB

Branded ANSI/ASA41-1 Narrow Section Simplex Roller Chain 1/2 inch Pitch 5 Metres

Branded ANSI/ASA41-1 Narrow Section Simplex Roller Chain 1/2 inch Pitch 5 Metres
$36.10 ex VAT
$36.10 ex VAT
Sale Sold out

In stock

Price Break
2+ $24.18
5+ $22.83
10+ $22.55
29+ $22.28
49+ $22.01
75+ $21.74
100+ $20.38
200+ $20.11
250+ $19.84
500+ $19.57
1000+ $19.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch (Narrow Section)
Technical
Pitch (P) 12.7mm = 0.5 (1/2) inch (Narrow Section)
Roller Diameter (D1 max) 7.77mm
Width between inner plates (B1 min) 6.25mm
Pin dia meter (D2 max) 3.58mm
Pin length (L max) 13.75mm
Pin length (Lc max) 15mm
Inner plate depth (H2 max) 9.91
mmPlate thickness (T max) 1.3
mmUltimate tensile strength (Q min) kN/LB 6.7/1506
Average tensile strength (Q0) kN 12.6
Weight per meter (q) kg/m 0.41
Reviews
View full details
