• 4201BTV Double Row Deep Groove Ball Bearing 12x32x14mm
1 1

SKU: 4201.B.TV.MB

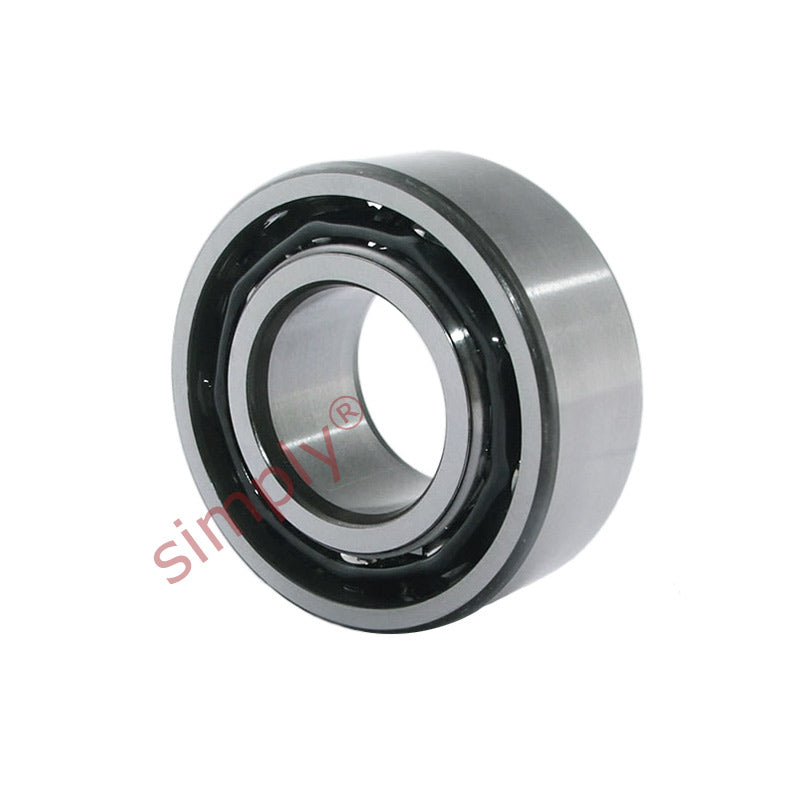

4201BTV Double Row Deep Groove Ball Bearing 12x32x14mm

4201BTV Double Row Deep Groove Ball Bearing 12x32x14mm
$32.70 ex VAT
$32.70 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.90
19+ $20.67
29+ $20.42
39+ $20.18
49+ $19.93
74+ $19.69
99+ $18.46
199+ $18.21
249+ $17.96
499+ $17.72
999+ $17.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability
Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
12mm
Outside Diameter:
32mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 12mm
D 32mm
B 14mm
d1 18.3mm
D1 25.7mm
r min 0.6mm
Basic dynamic load rating C 10.6 kN
Basic static load rating C0 6.2 kN
Fatigue load limit Pu 0.26 kN
Reference Speed 36000 rpm
Limiting Speed 20000 rpm
Weight 0.06 kg
