• 4206B Double Row Deep Groove Ball Bearing 30x62x20mm
1 1

SKU: 4206.B.MB

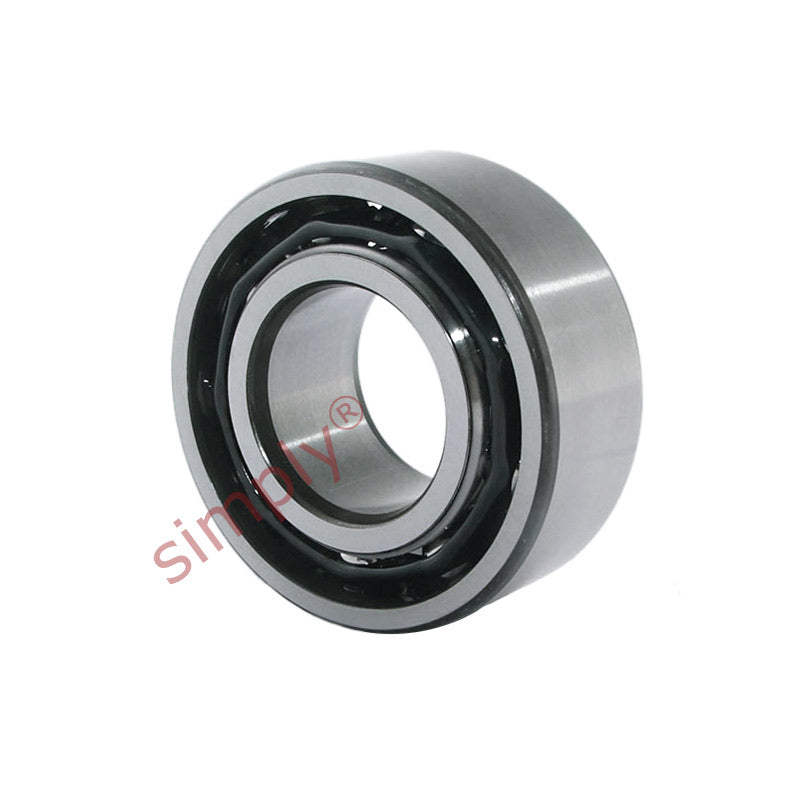

4206B Double Row Deep Groove Ball Bearing 30x62x20mm

4206B Double Row Deep Groove Ball Bearing 30x62x20mm
$47.04 ex VAT
$47.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $31.51
19+ $29.74
29+ $29.38
39+ $29.03
49+ $28.67
74+ $28.32
99+ $26.55
199+ $26.20
249+ $25.84
499+ $25.49
999+ $24.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability
Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
20mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 30mm
D 62mm
B 20mm
d1 40.9mm
D1 51.1mm
r min 1mm
Basic dynamic load rating C 26 kN
Basic static load rating C0 20.8 kN
Fatigue load limit Pu 0.88 kN
Reference Speed 17000 rpm
Limiting Speed 9500 rpm
Weight 0.29 kg
