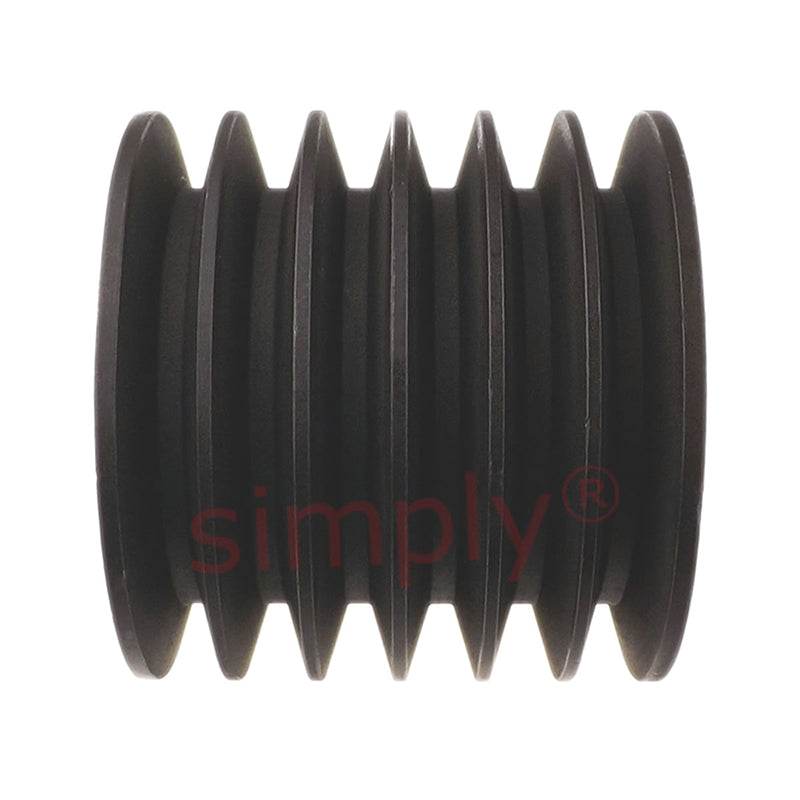

• 425X6SPC 425mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 1

SKU: 425SPC6-MB

425X6SPC 425mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

425X6SPC 425mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$415.87 ex VAT
$415.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $278.56
5+ $262.91
9+ $259.78
19+ $256.65
49+ $253.52
74+ $250.39
99+ $234.74
199+ $231.61
249+ $228.48
499+ $225.35
999+ $219.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
435.2mm
Pitch Diameter:
425mm
Max Bore:
110mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4545+tapered+locking+bush">4545 Click Here</a>
Pitch Diameter B 425mm
Overall Outer Diameter C 435.2mm
Max Bore A 110mm
Outer Hub Diameter E 240mm
Overall Sheave Depth F 162mm
Bush Seat Length G 114.3mm
Inner Recess Diameter D 268mm
Inner Recess Length H 23mm
